ALKYD MANUFACTURING PLANTS

For your alkyd manufacturing plant projects, Makfen provides a turnkey service from design through to commissioning. Manufacture and installation of the plant equipment, installation of the interconnecting piping and commissioning of the plant in working order are all handled by Makfen as a single contractor. Since 2009, Makfen has manufactured process equipment at its production facilities in Gebze and Dilovası.

What Is Alkyd?

The word alkyd is derived from alcohol and acid. Alkyd is a synthetic polyester resin formed by the polycondensation of polyhydric alcohols (polyols) with dibasic acids or anhydrides and modified with vegetable oils or fatty acids. The polyester part of the resin contributes to hardness, while the oil and fatty acid part contributes to flexibility, adhesion, pigment wetting and solubility in solvents. Air-drying alkyds use unsaturated fatty acids. Alkyd resin directly affects film formation in paint and varnish systems and is the main component that determines the key properties of the coating film, such as physical and chemical resistance, adhesion and durability.

How Is Alkyd Resin Manufactured?

Alkyd resin is obtained by esterification of polyhydric alcohols and dibasic acids and modification with oils or fatty acids at approximately 200–240 °C. The water formed during the reaction is removed from the process. Alkyd resin production is divided into two methods: the solvent (azeotropic) process and the solvent-free (fusion) process. In the solvent process, the reaction water is separated with a reflux condenser and water separator, whereas in the fusion process it is removed with the help of an inert gas.

With either method, building the plant on a sound process design and selecting the right equipment directly affect product quality and plant efficiency. Makfen designs alkyd resin manufacturing plant systems to the requirements of customers in Türkiye and abroad, and also provides technical support in process engineering.

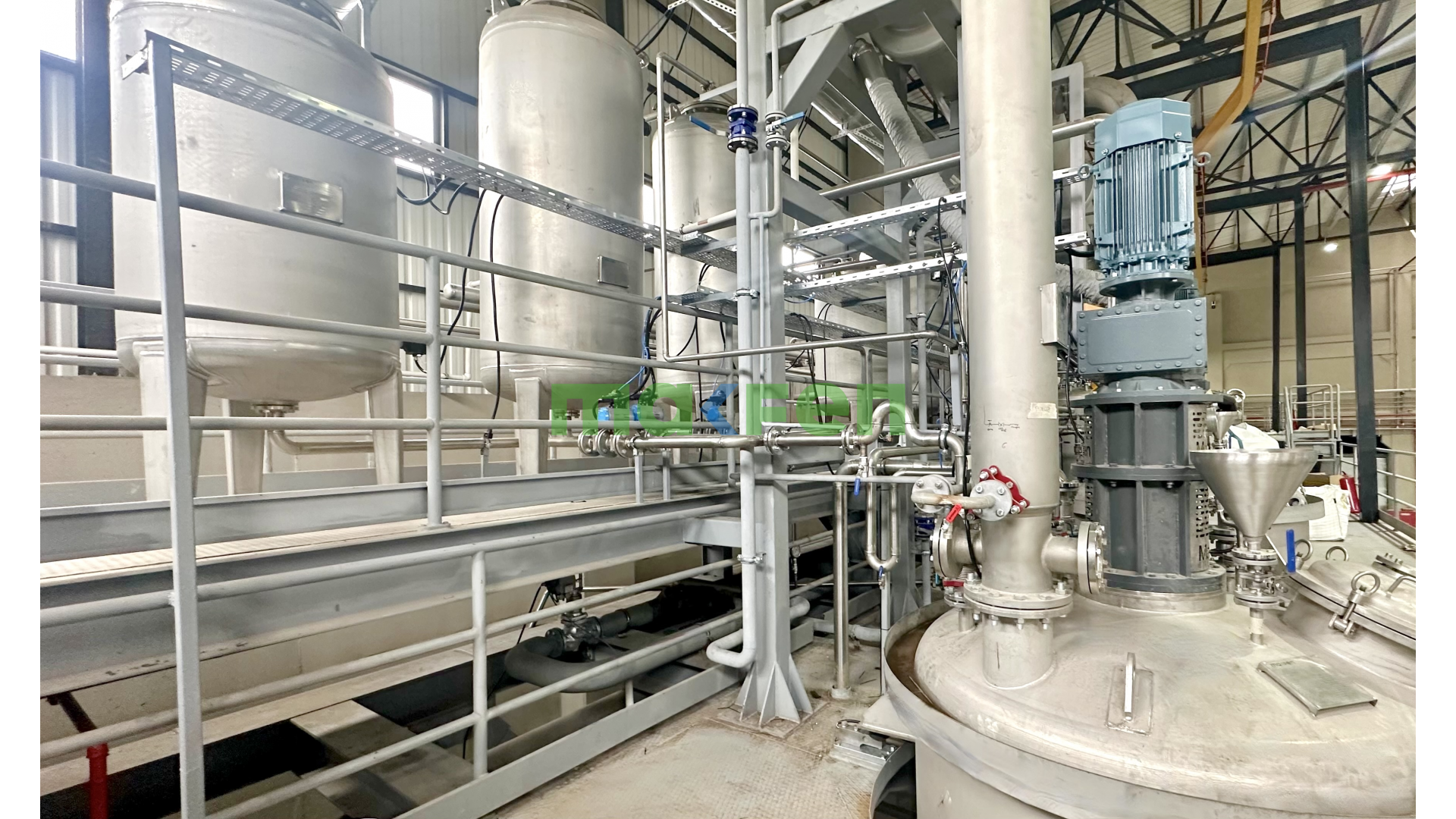

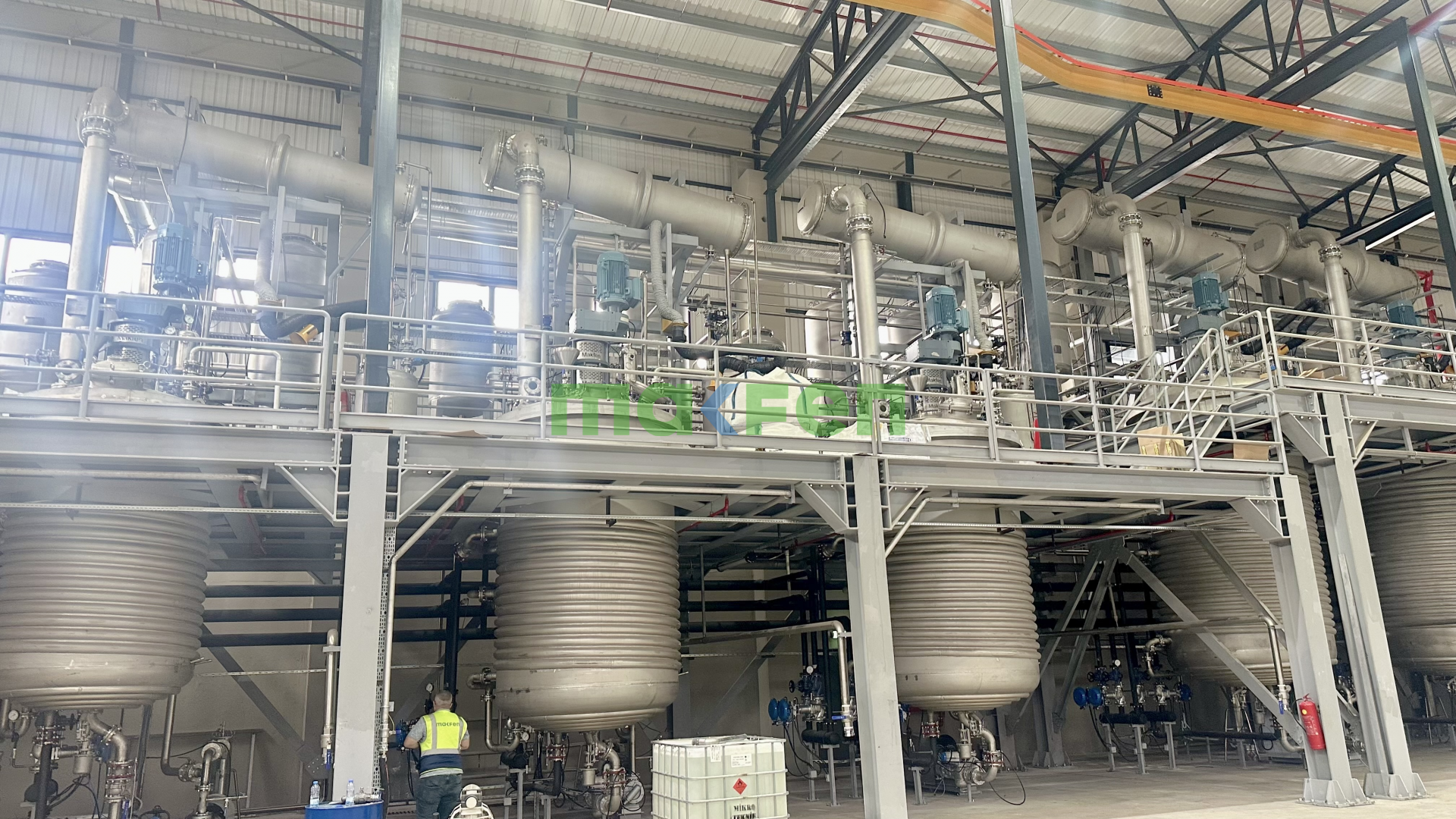

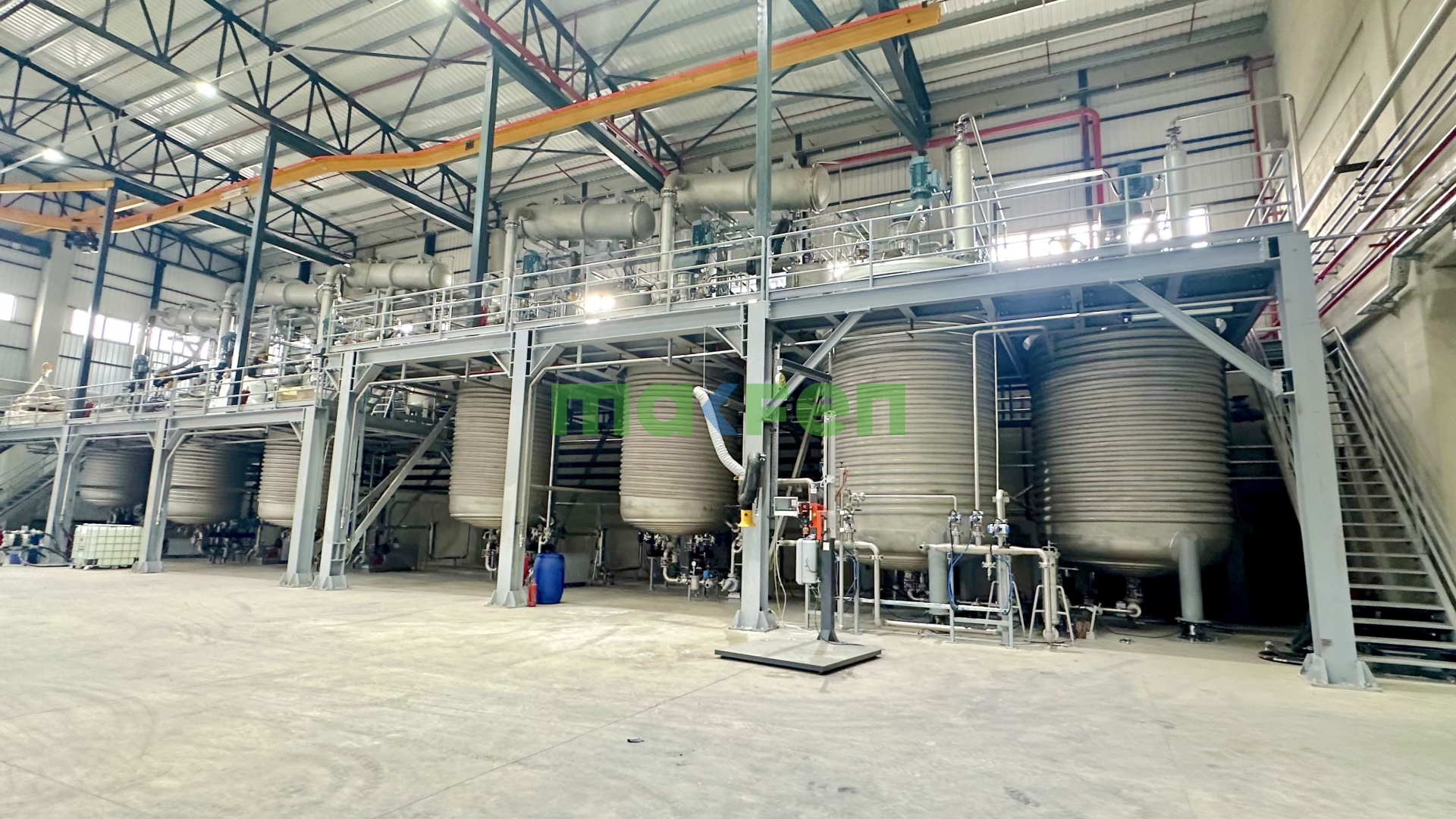

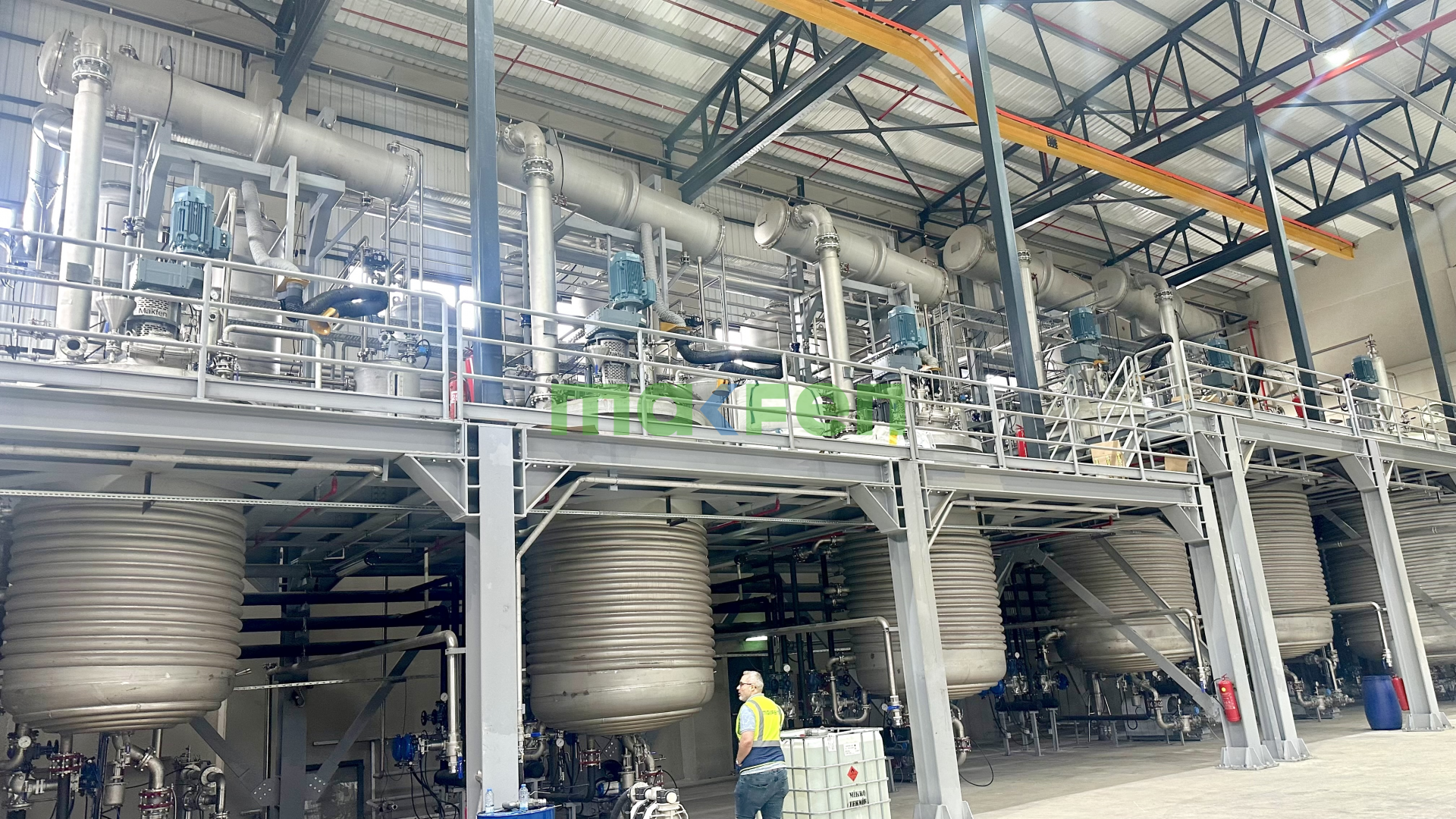

Scope of an Alkyd Manufacturing Plant

• Alkyd reactors with jacket or coil, heated by thermal oil
• Reflux condenser, water separator and solvent recovery line
• Thinning vessels and blenders in which the resin is cooled and thinned with solvent
• Raw material storage tanks, solid and liquid raw material feeding and weighing systems
• Filtration unit and finished product storage tanks
• Ex-proof motors and electrical equipment with PLC-based automation
• Process and utility piping between equipment
• Installation, commissioning, test reports and operating and maintenance documentation

Contact Makfen for information and a quotation for an alkyd manufacturing plant, or to find out about our other plant services.
