EVAPORATOR MANUFACTURING

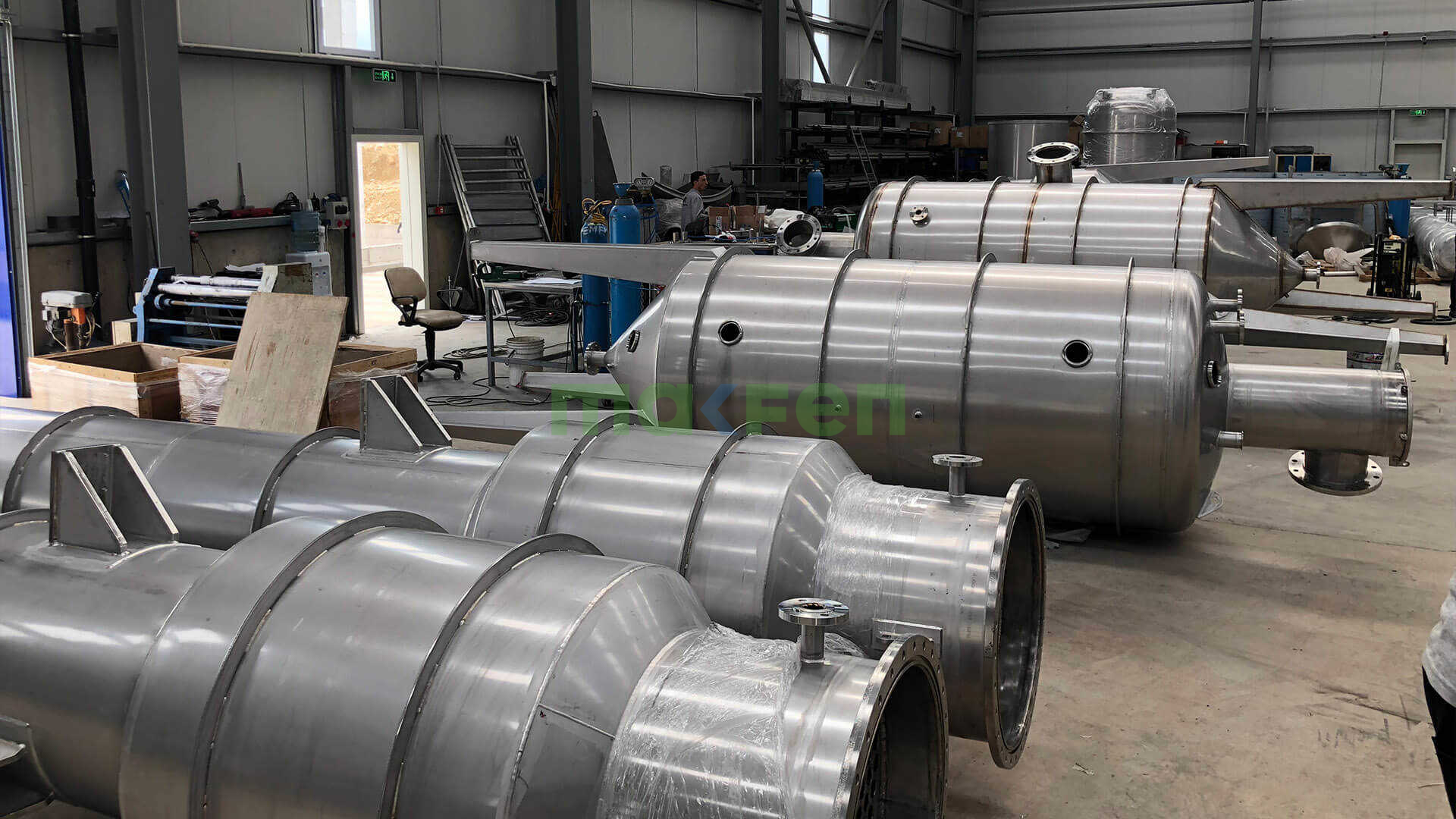

Evaporators are process equipment that concentrate a product, or separate its components, by evaporating the volatile part of a solution, usually water or a solvent. As part of its evaporator manufacturing, Makfen builds thin film evaporators developed especially for high-viscosity and heat-sensitive products.

What Is a Thin Film Evaporator?

A thin film evaporator is a system in which a rotating rotor spreads the feed liquid as a thin film over the heated body wall, so that the volatile component evaporates rapidly from this film. The heating medium (steam or thermal oil) circulates in the jacket surrounding the body and never comes into direct contact with the product; heat is transferred indirectly through the body wall. The system is usually operated under vacuum to lower the boiling temperature, and the evaporated component is condensed and collected in a condenser. The key advantage of thin film evaporators is that they can separate substances that are difficult to separate by conventional methods without damaging the product.

Features

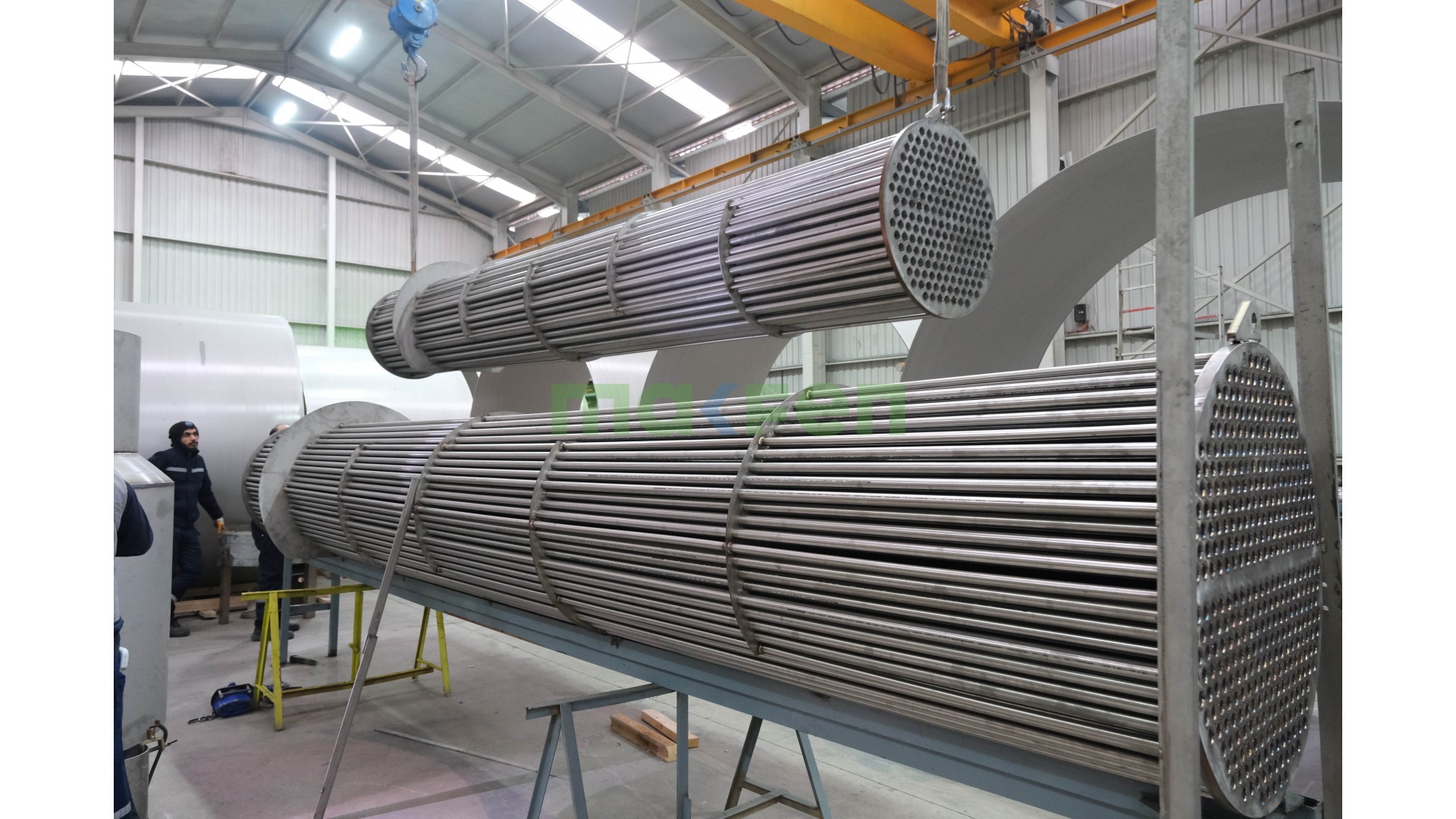

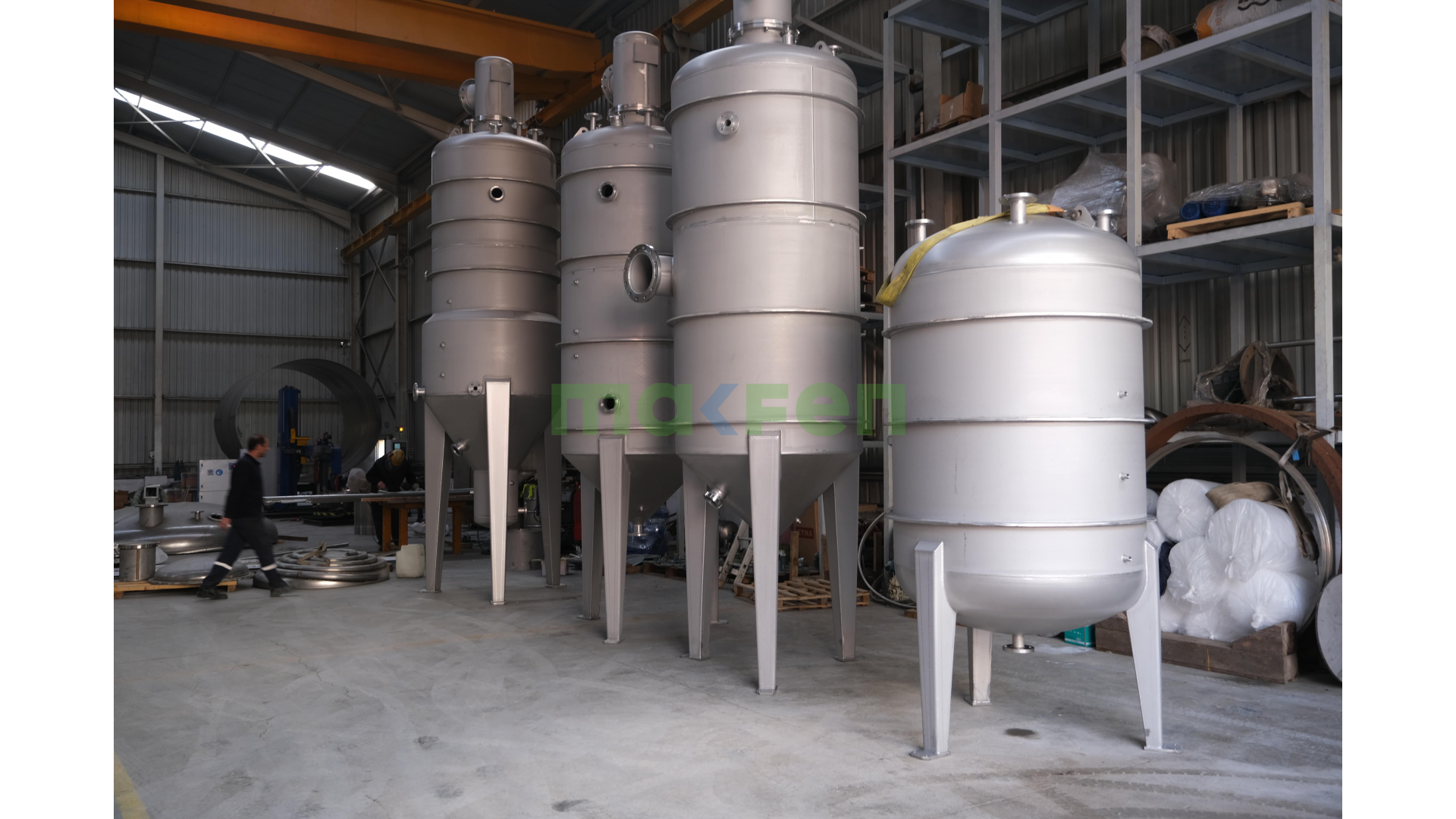

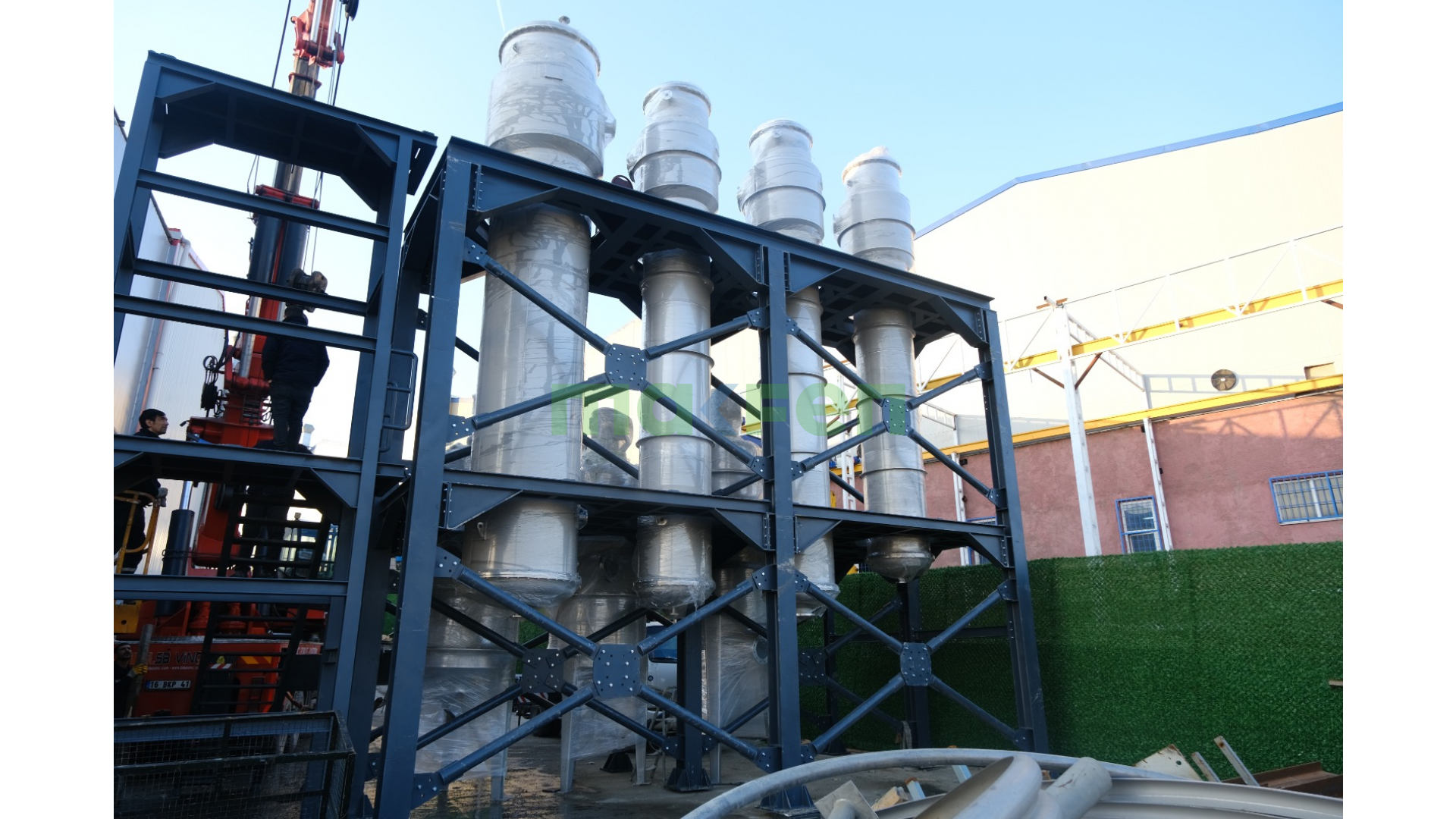

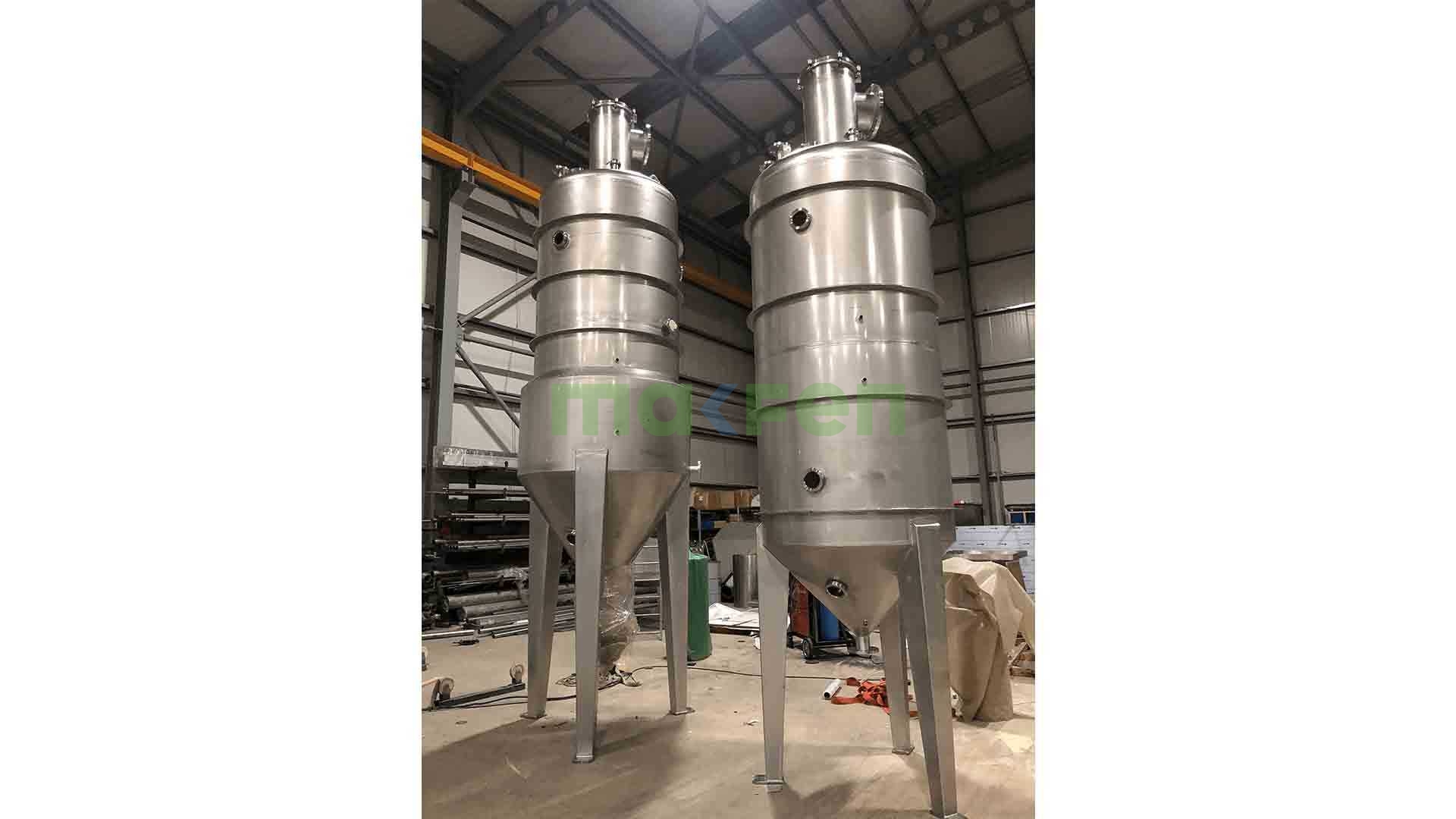

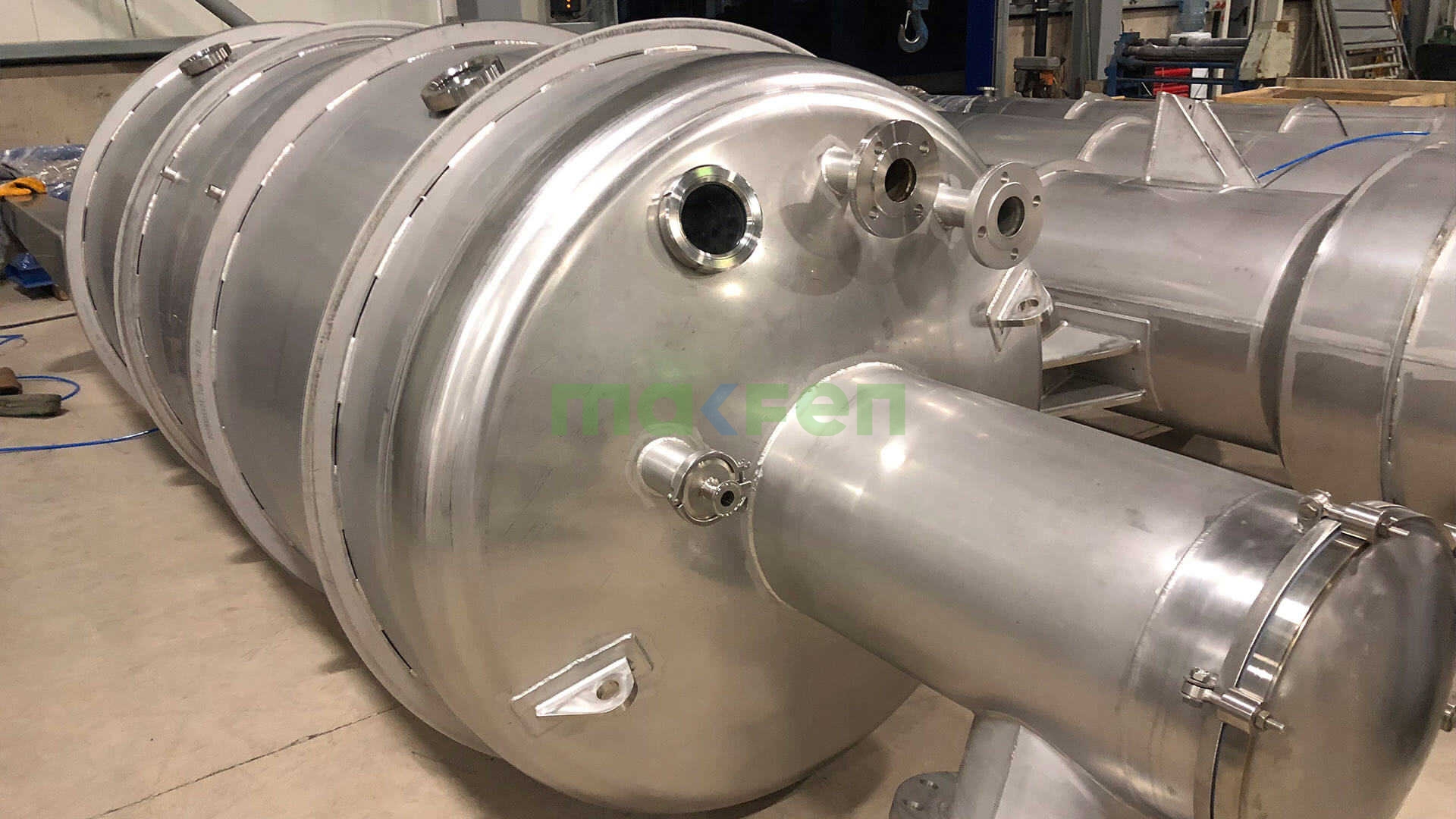

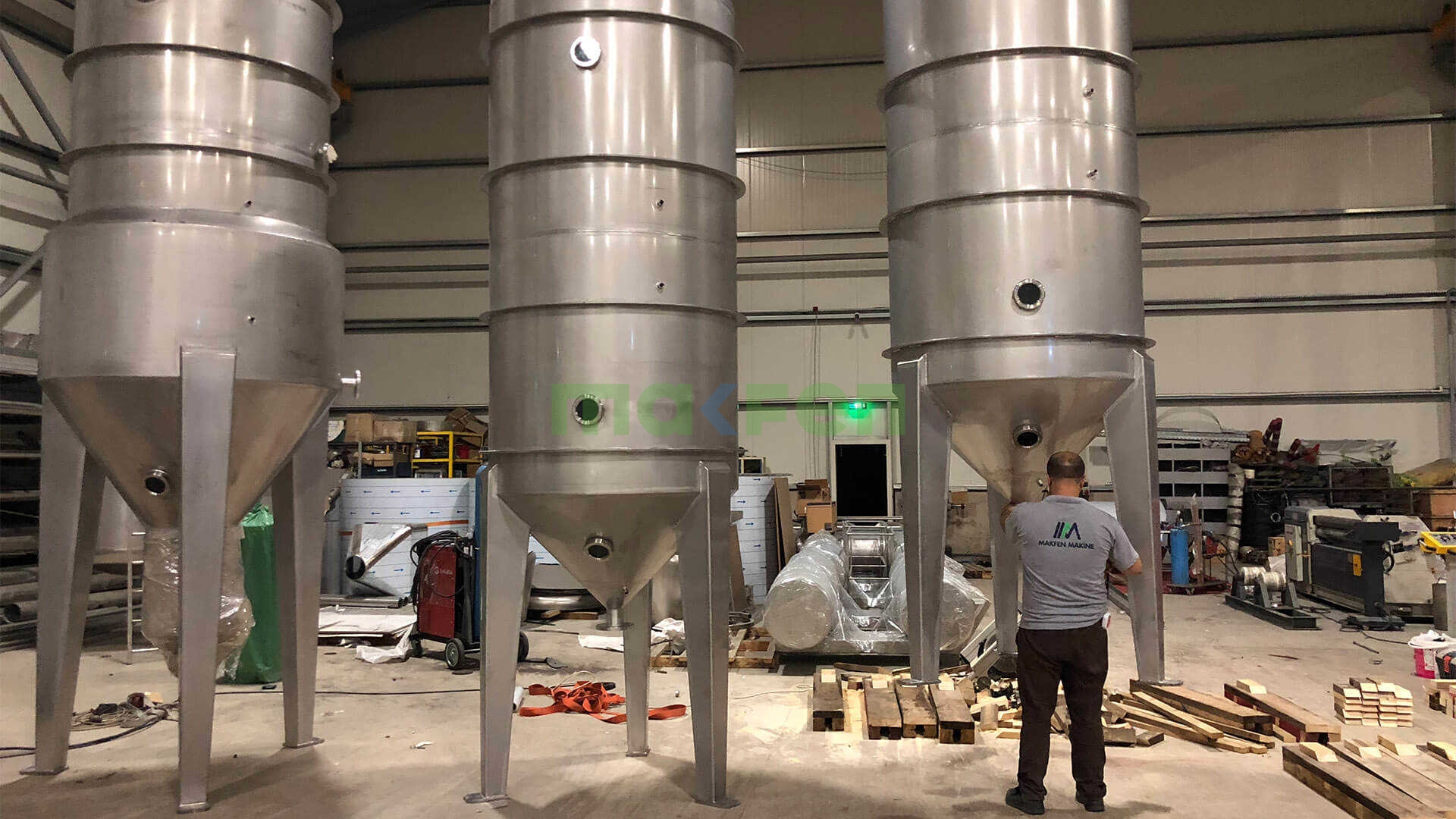

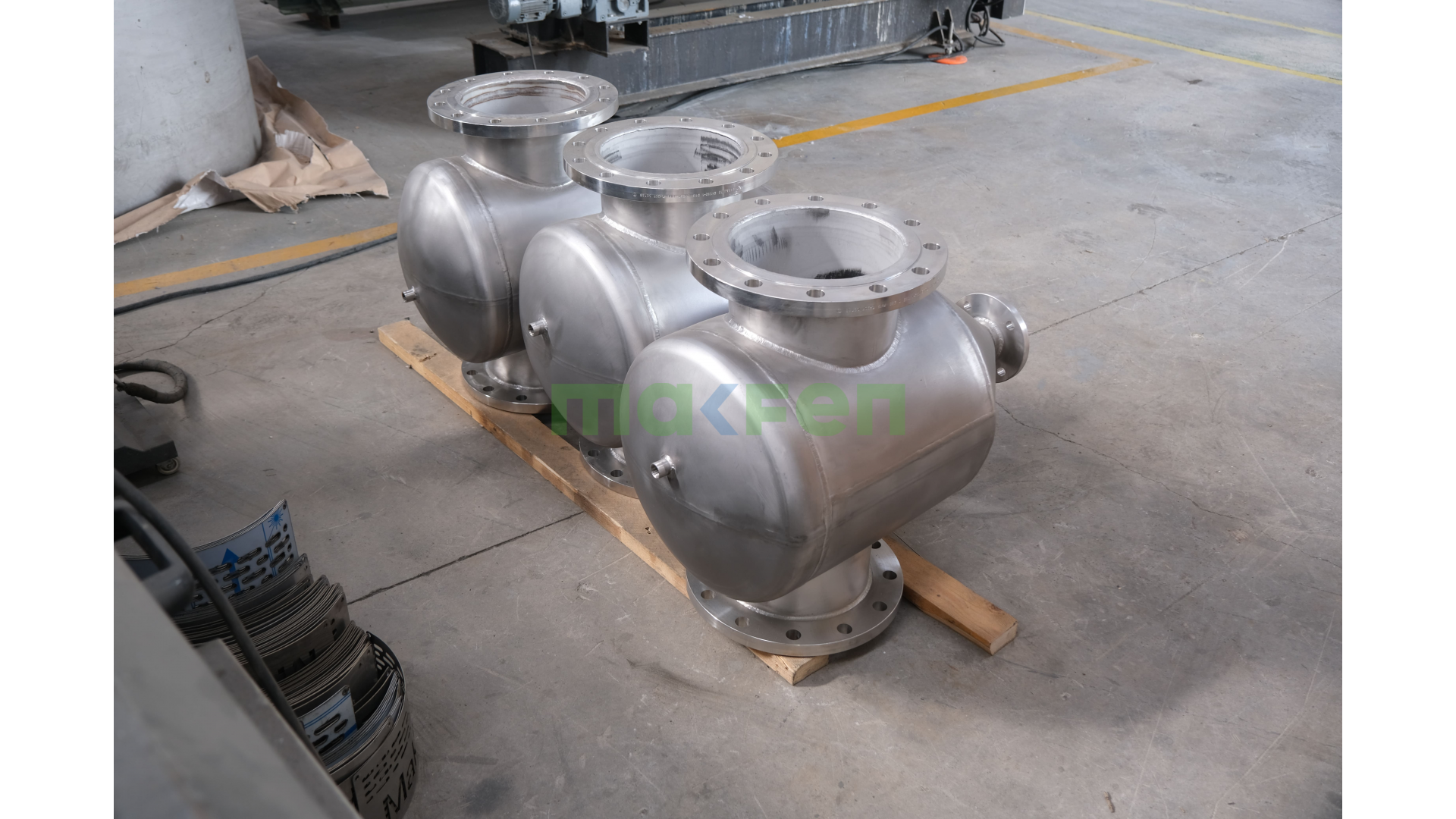

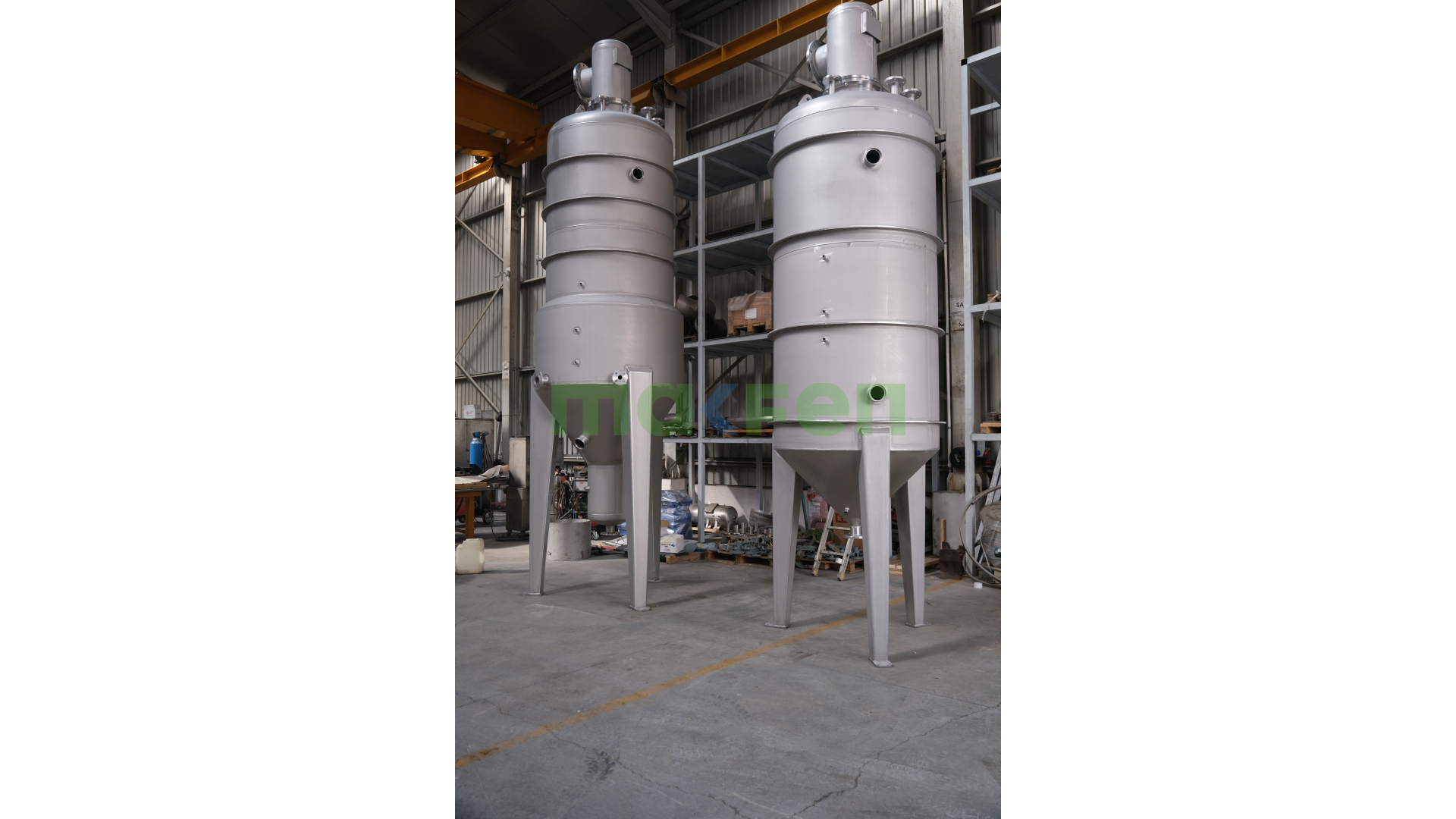

Used in many industrial processes, thin film evaporators basically consist of a jacketed body and a rotor turning inside it; the vertical design is the most widely preferred. The very short contact time between the product and the heated surface, together with the highly turbulent film, allows heat-sensitive materials to be processed without degradation.

Mode of Operation

In vertical thin film evaporators, the feed liquid enters at the top of the body, tangentially to the heated surface. The rotor blades spread the liquid over the body wall to form a thin film; their movement creates waves and a highly turbulent flow in the film. This flow increases heat transfer, and the product film moves down the heated wall in a spiral path. The volatile component evaporates and is routed from the top to the condenser, while the concentrated product is discharged from the bottom of the body. As a result, separation takes place extremely quickly.

Areas of Use

• Food and beverage industry
• Chemical industry
• Pharmaceutical industry
• Petrochemical industry

Features of Makfen Evaporators

• Design and manufacture to user requirements and process data
• Materials selected for the product and operating conditions: AISI 304/316L stainless steel or carbon steel
• Certified materials
• Jacketed body suitable for heating with steam or thermal oil
• Construction suitable for vacuum operation, with a mechanical seal suited to the system
• Rotor speed control via frequency inverter
• Thermal insulation
• PLC control panel
• Ex-proof motor or motor with a suitable IP rating
• Polishing and painting appropriate to the material grade
• Technical drawings, material certificates, test reports and operation/maintenance documentation

For information and a quotation for evaporator manufacturing, please contact Makfen via our contact page.
