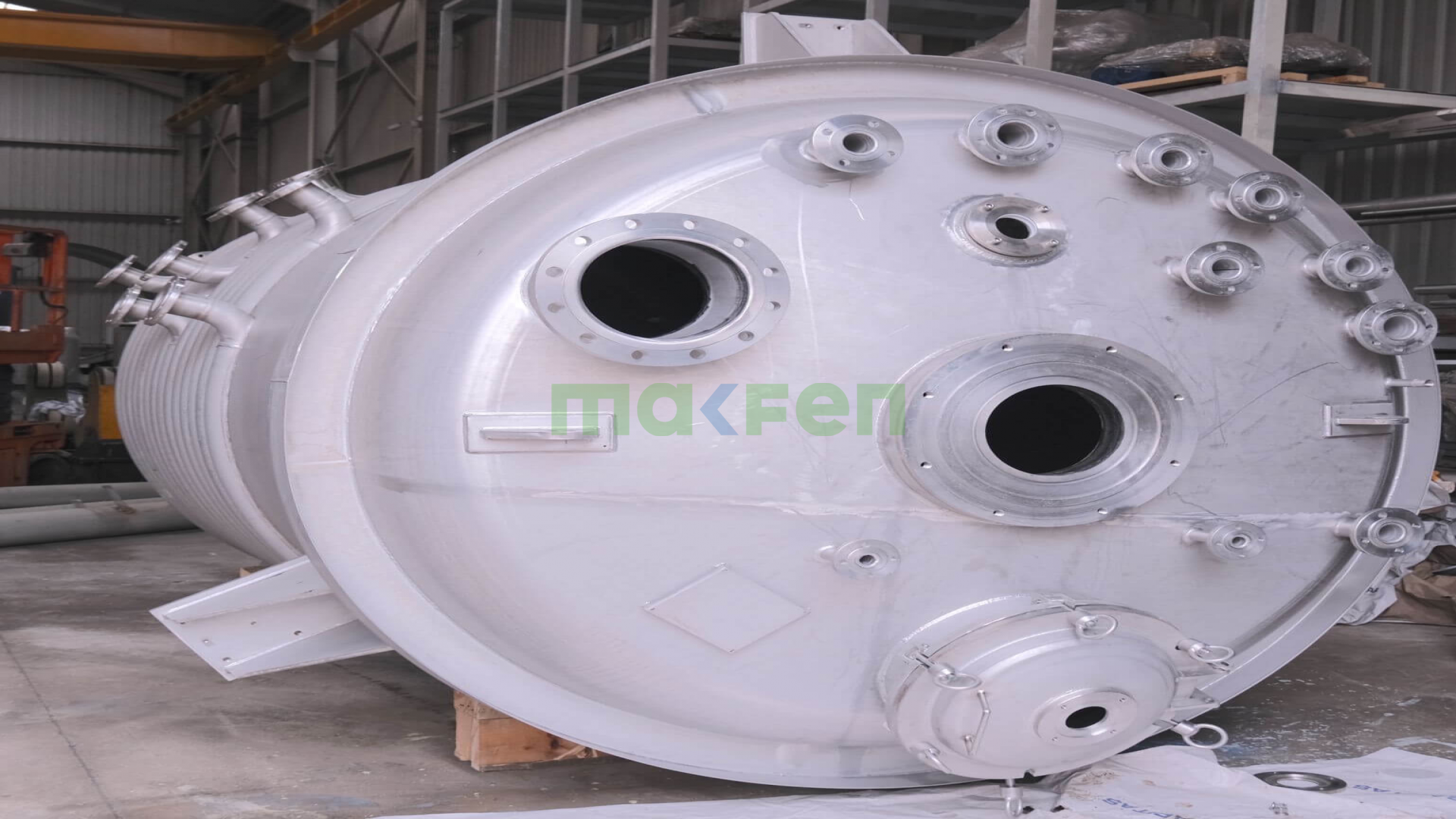

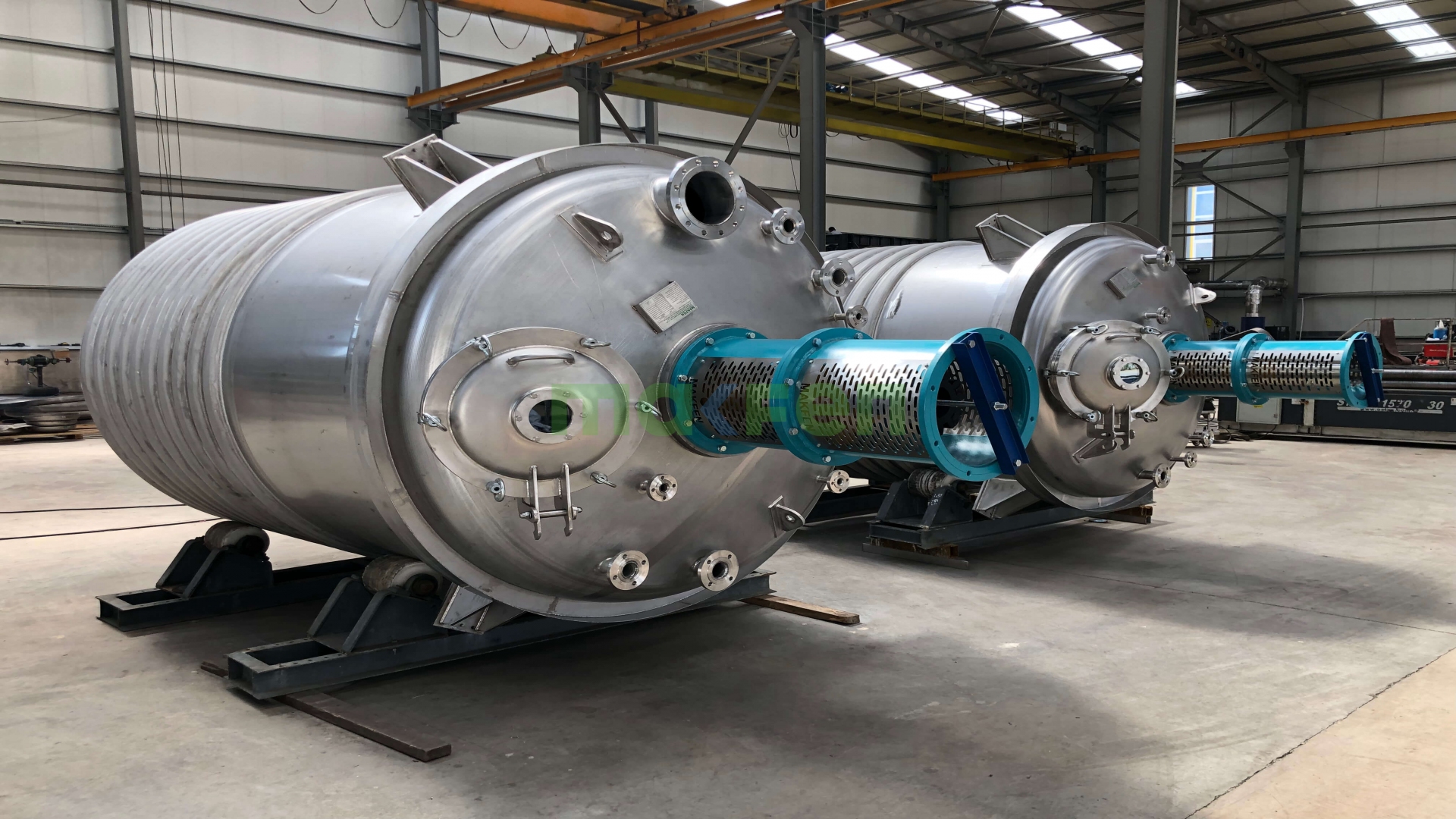

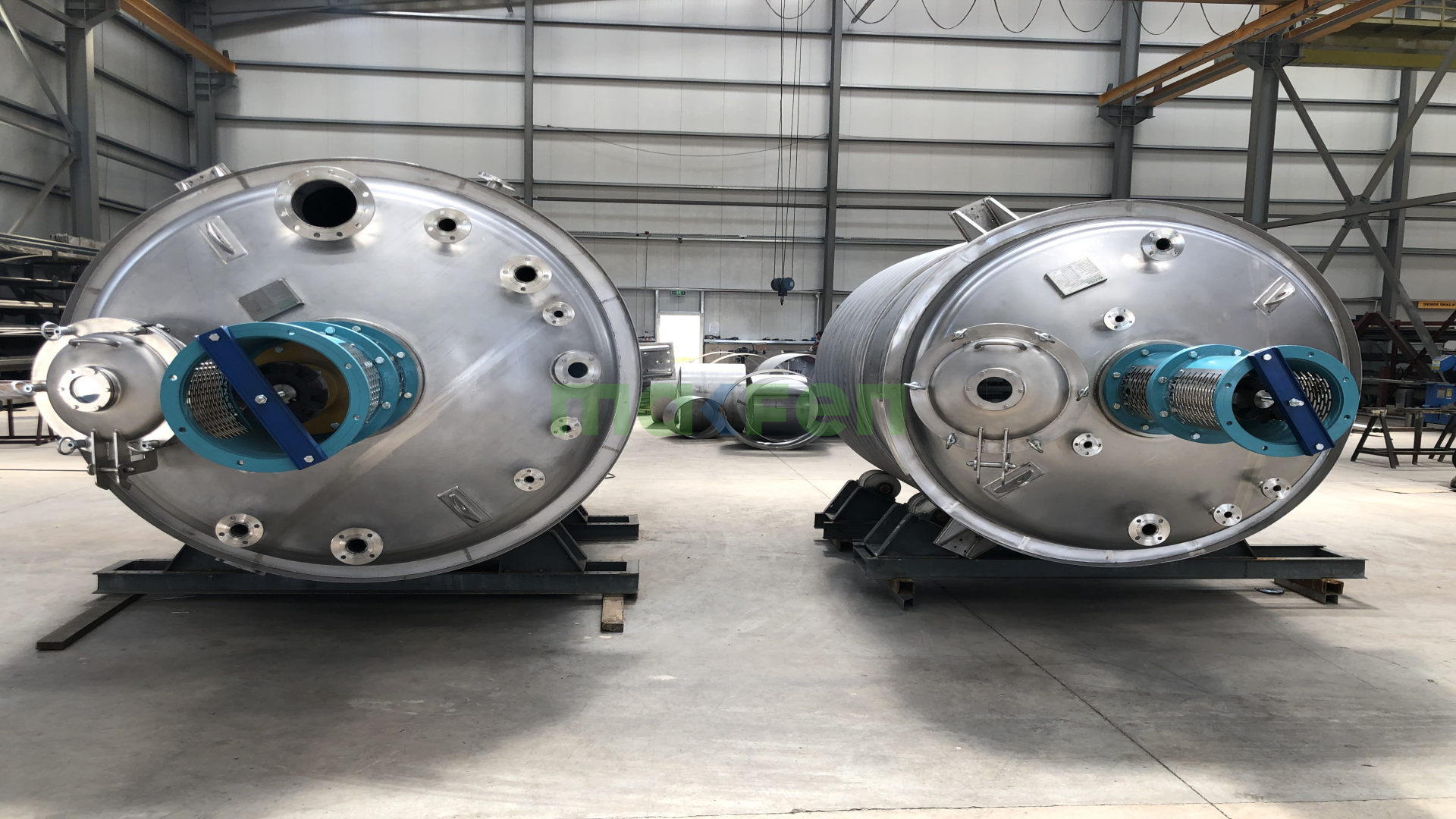

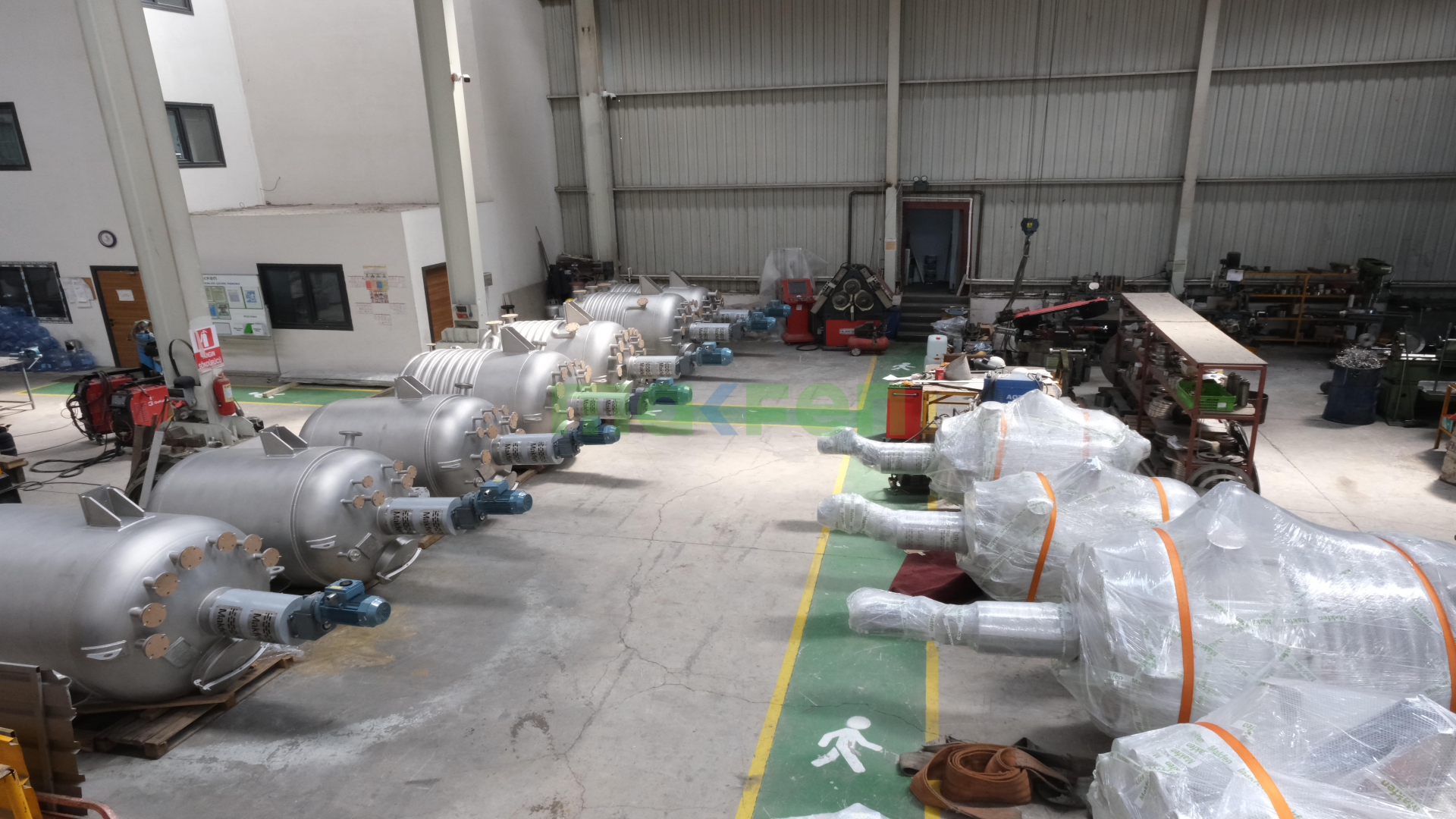

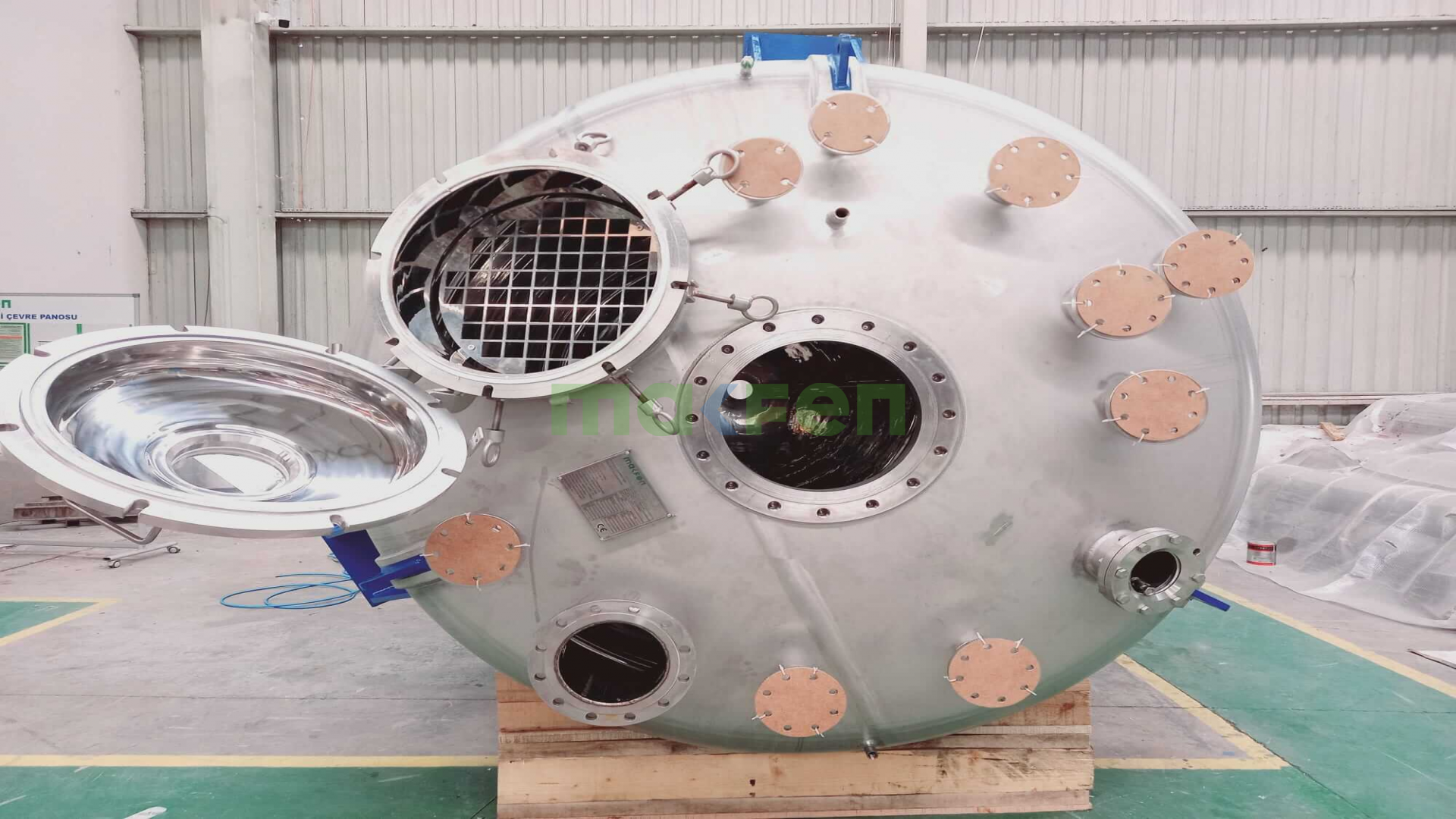

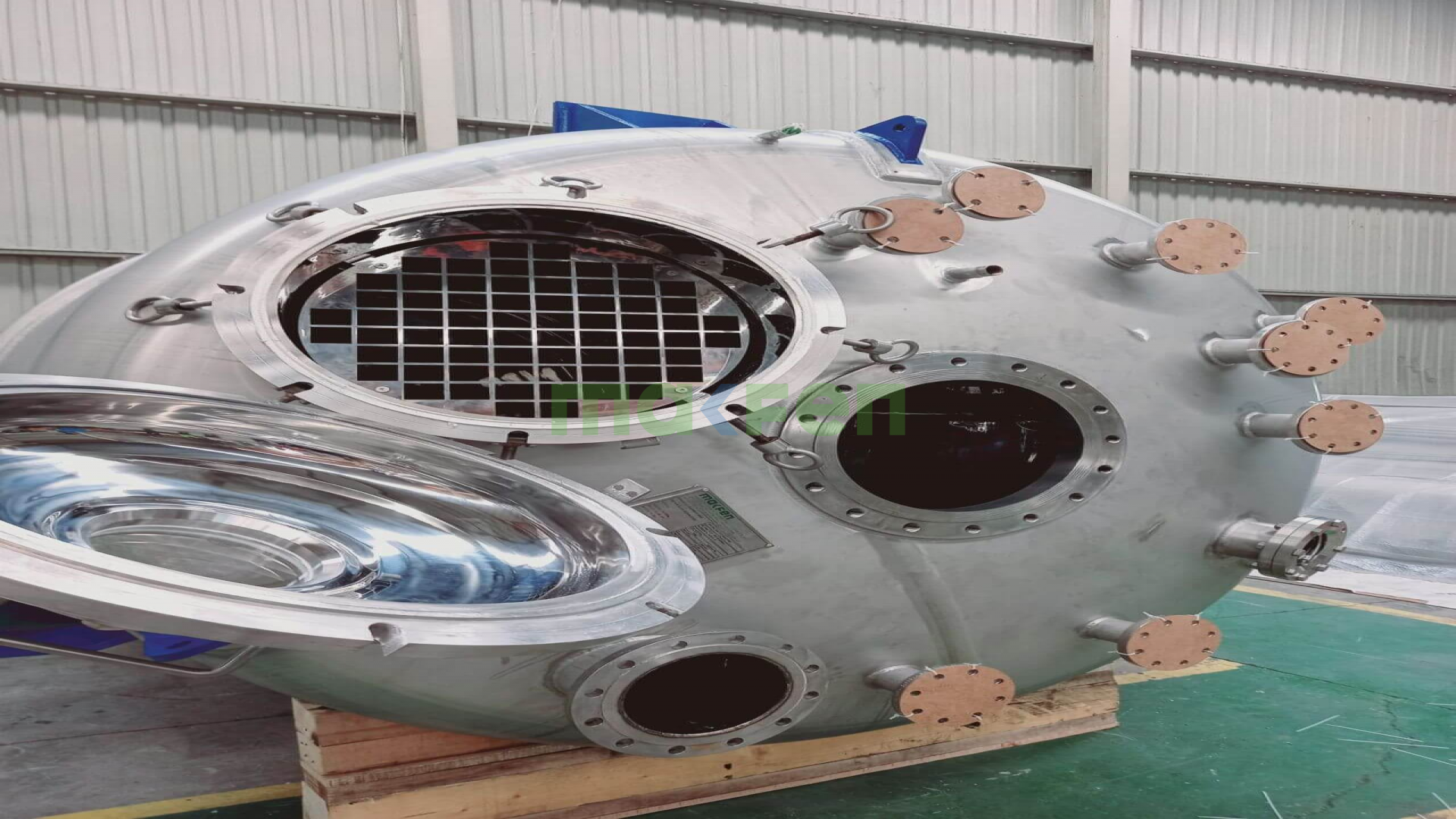

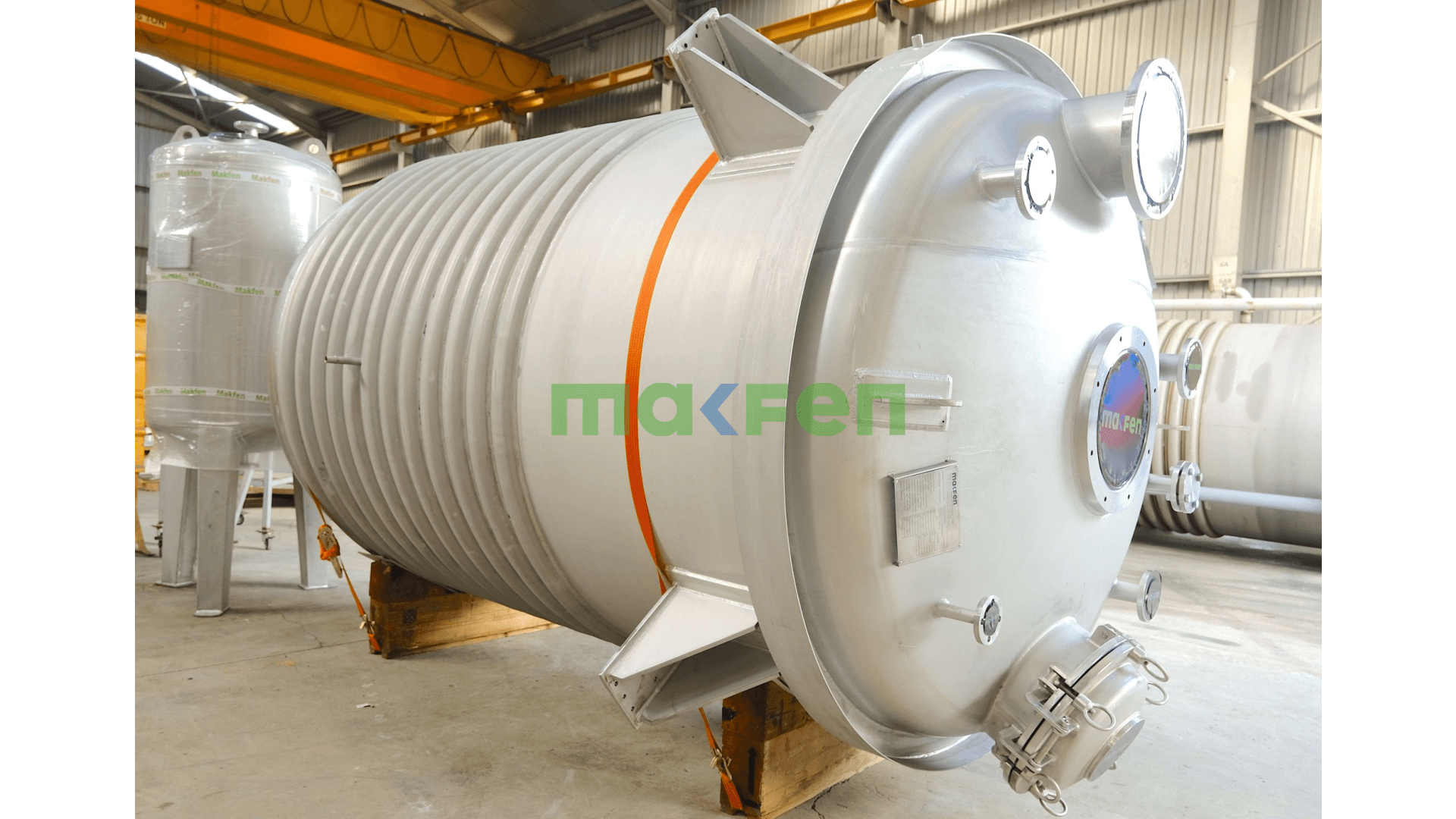

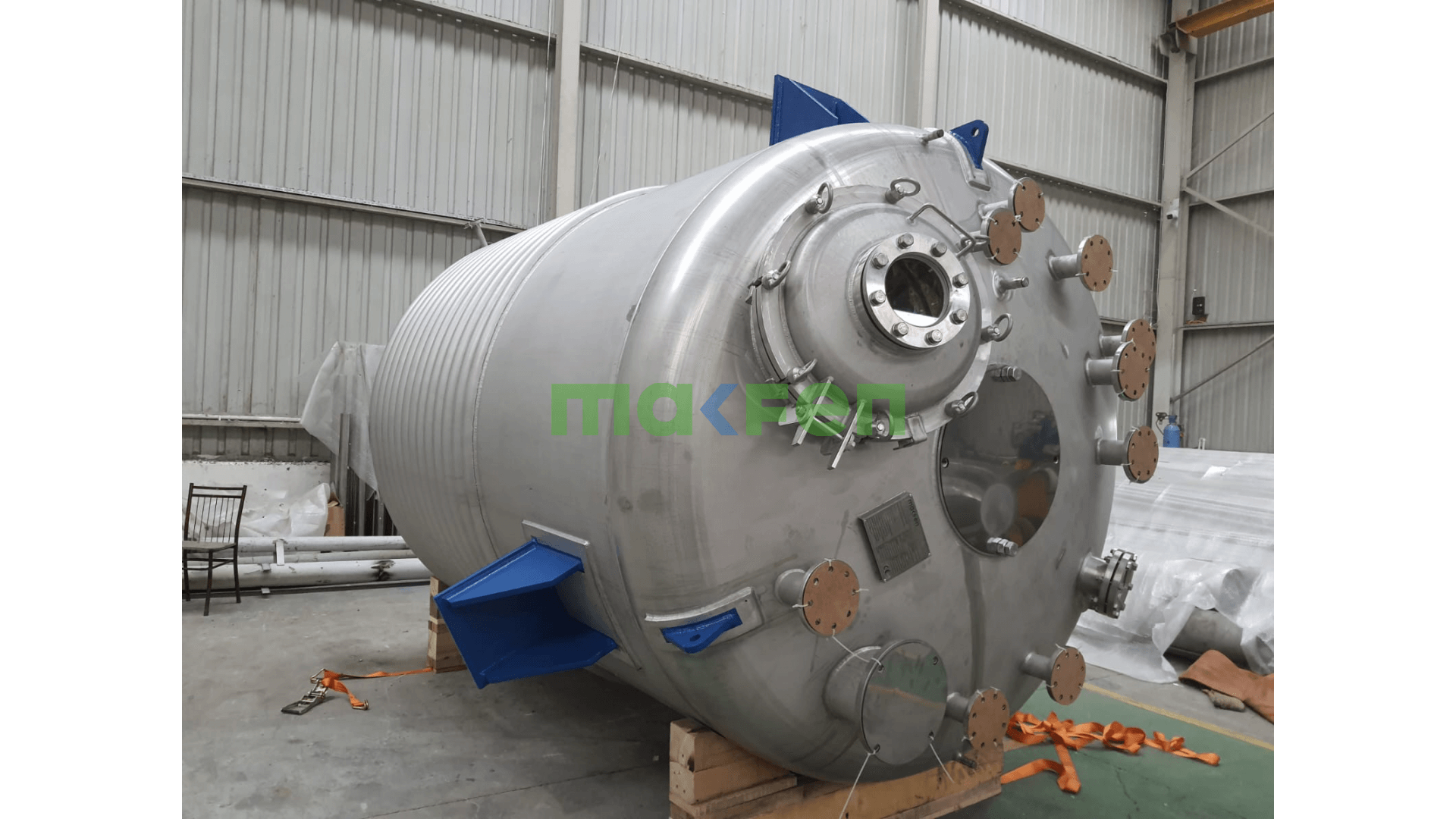

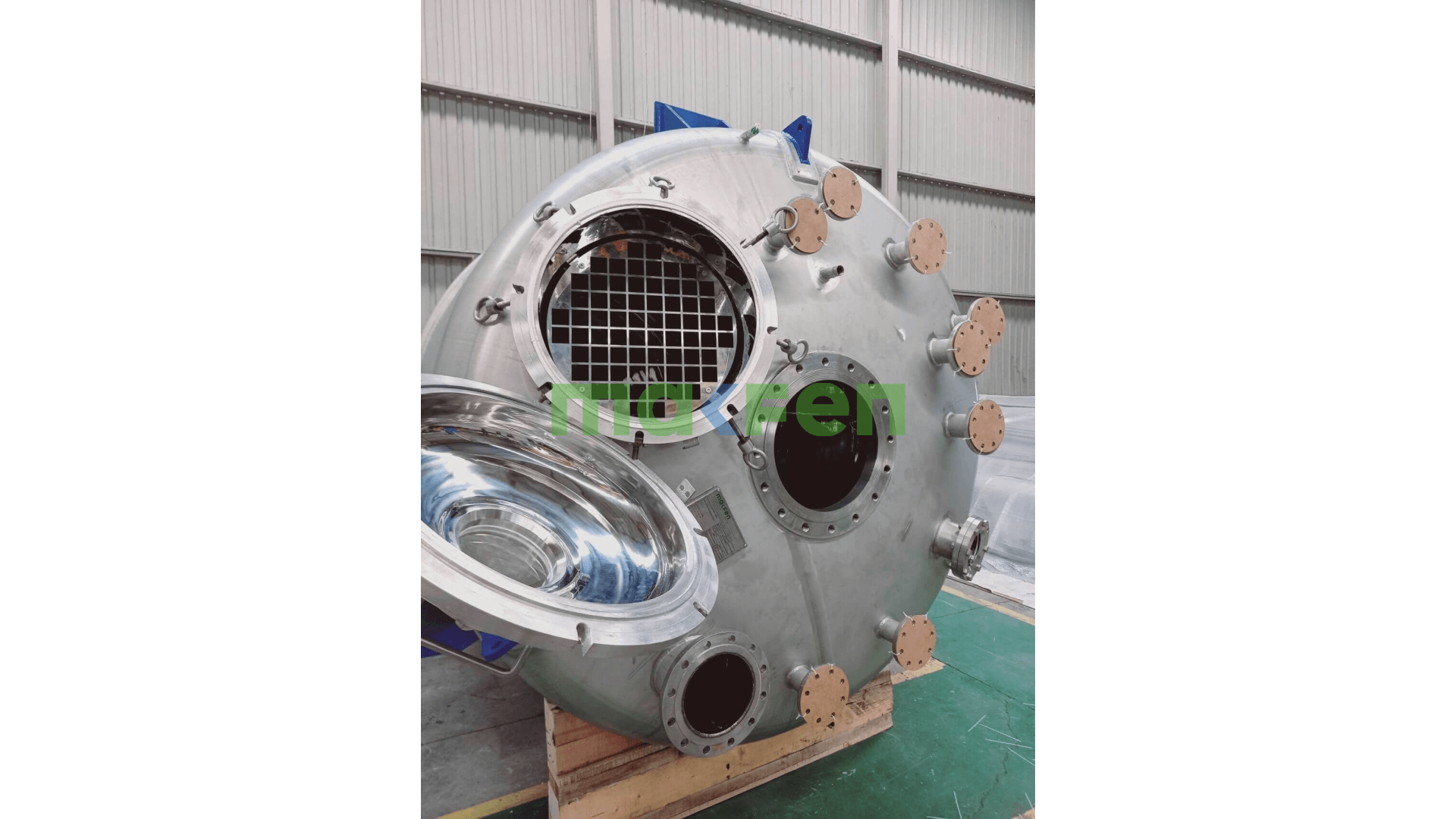

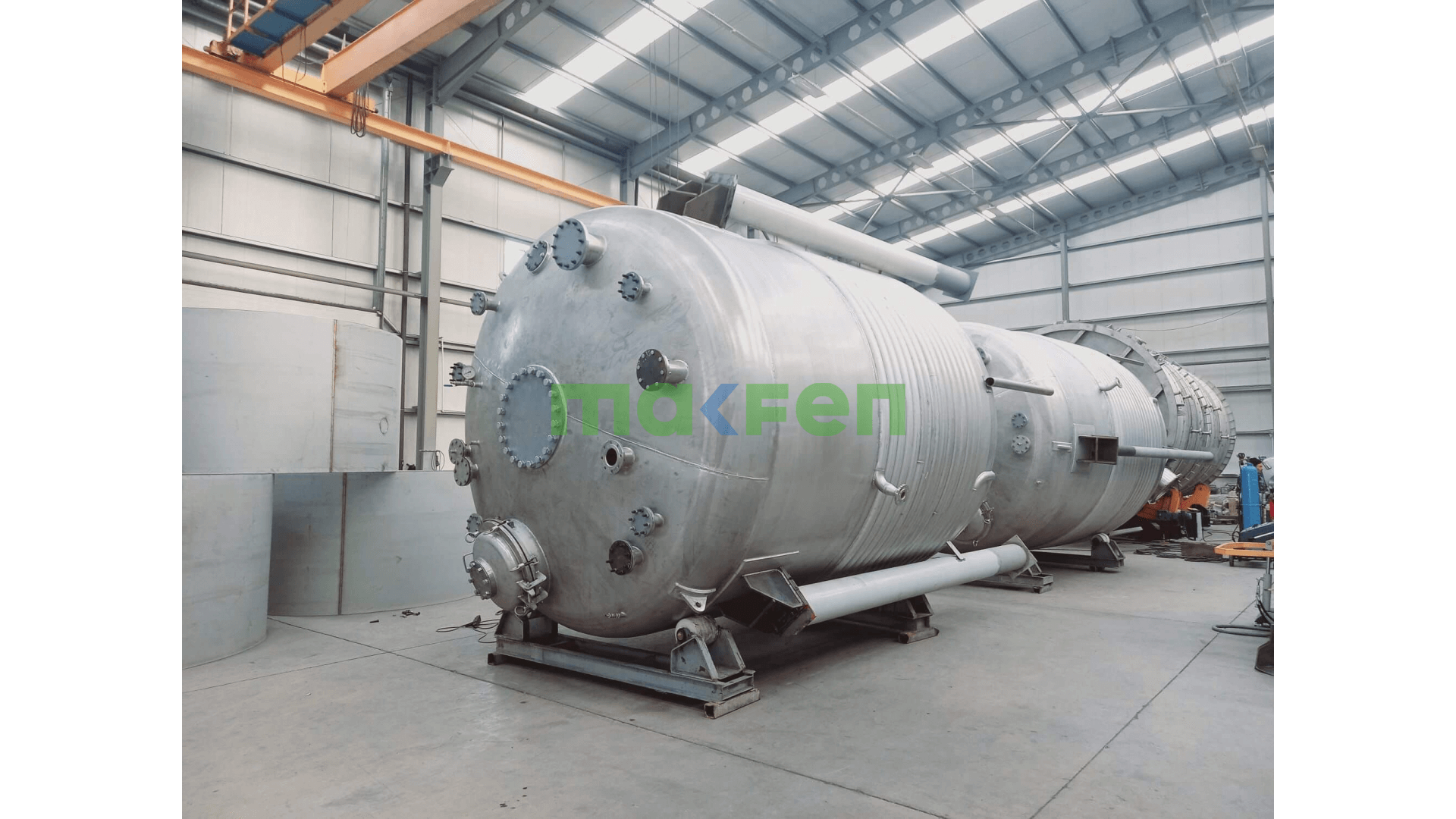

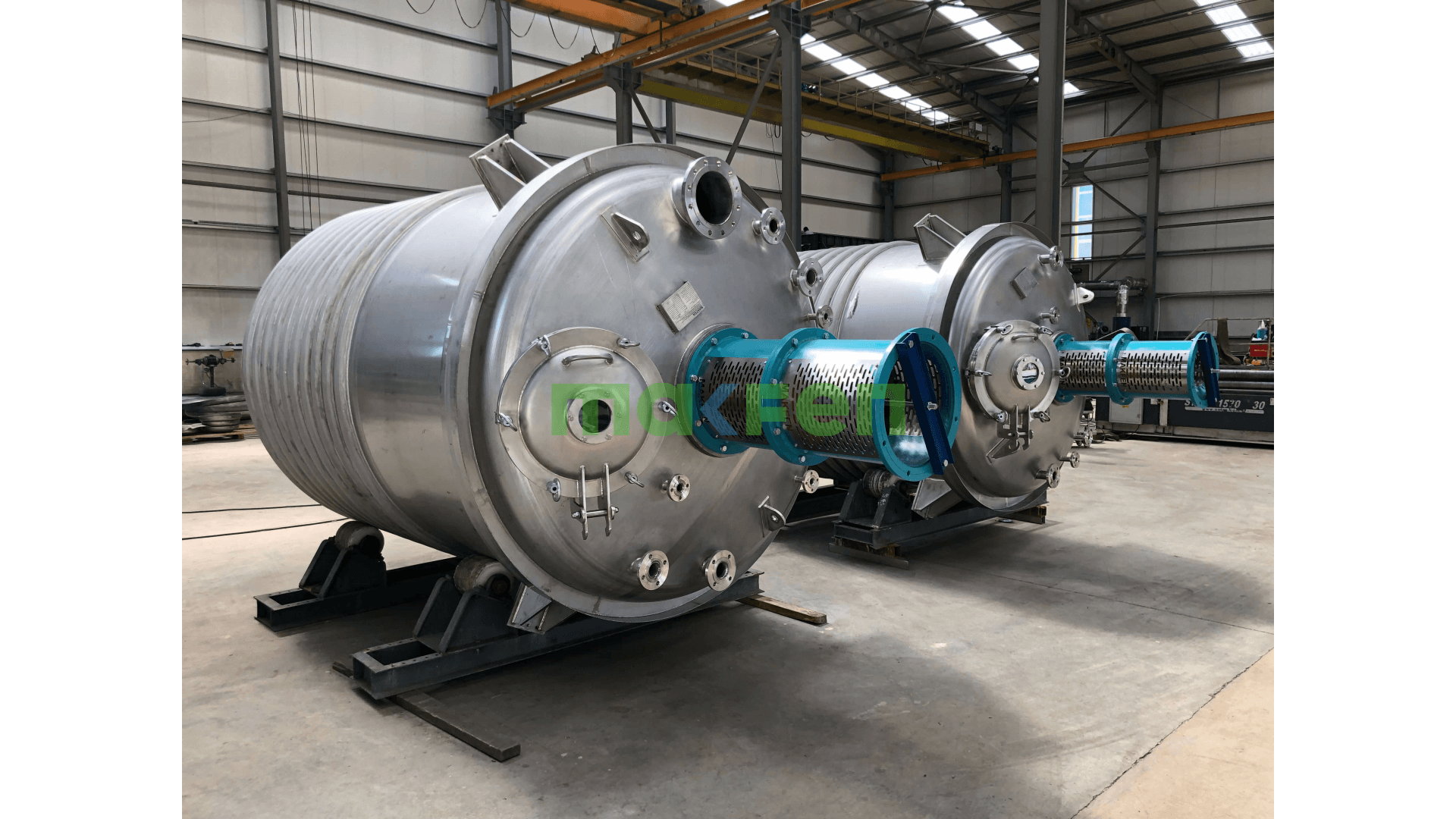

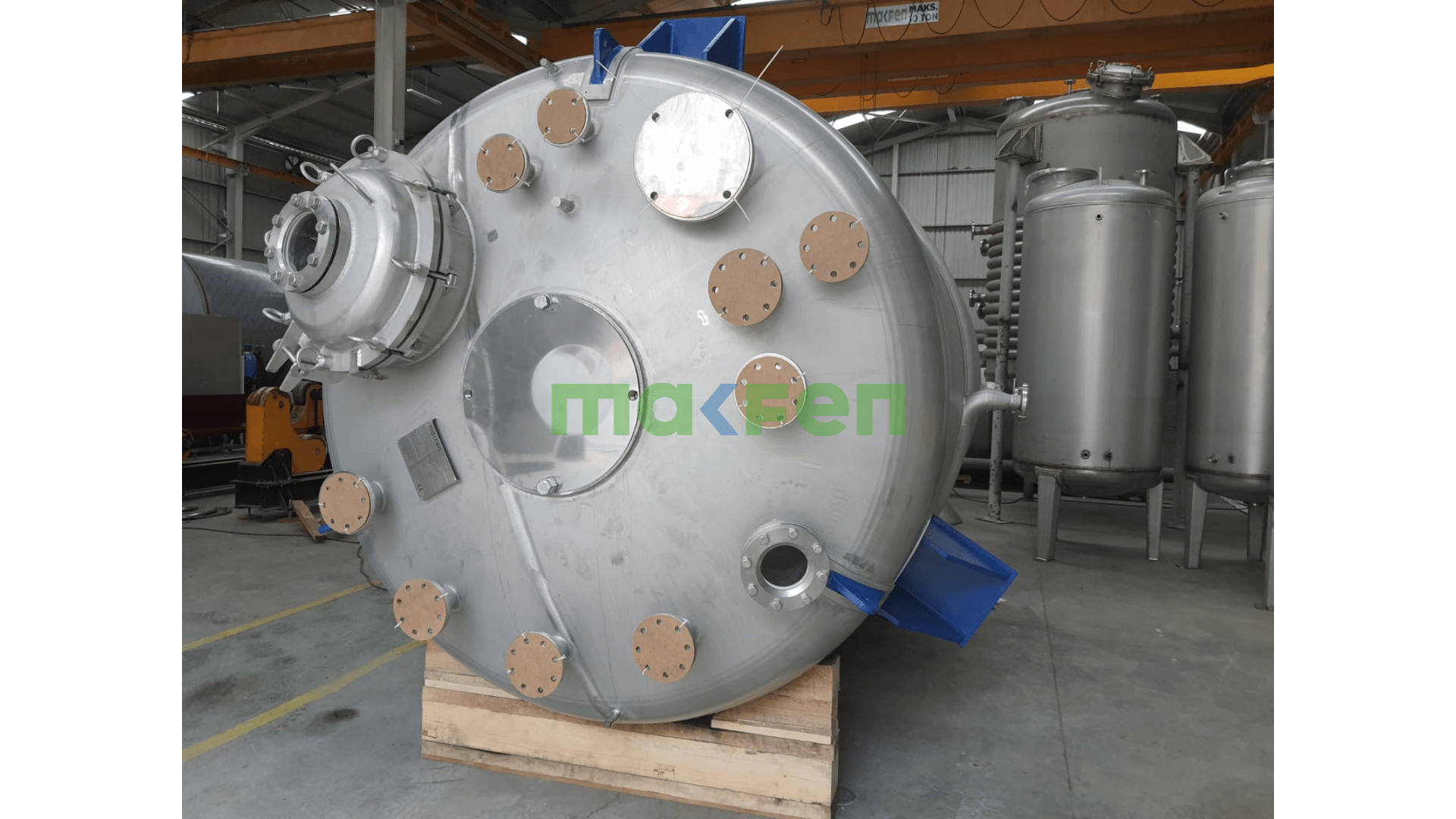

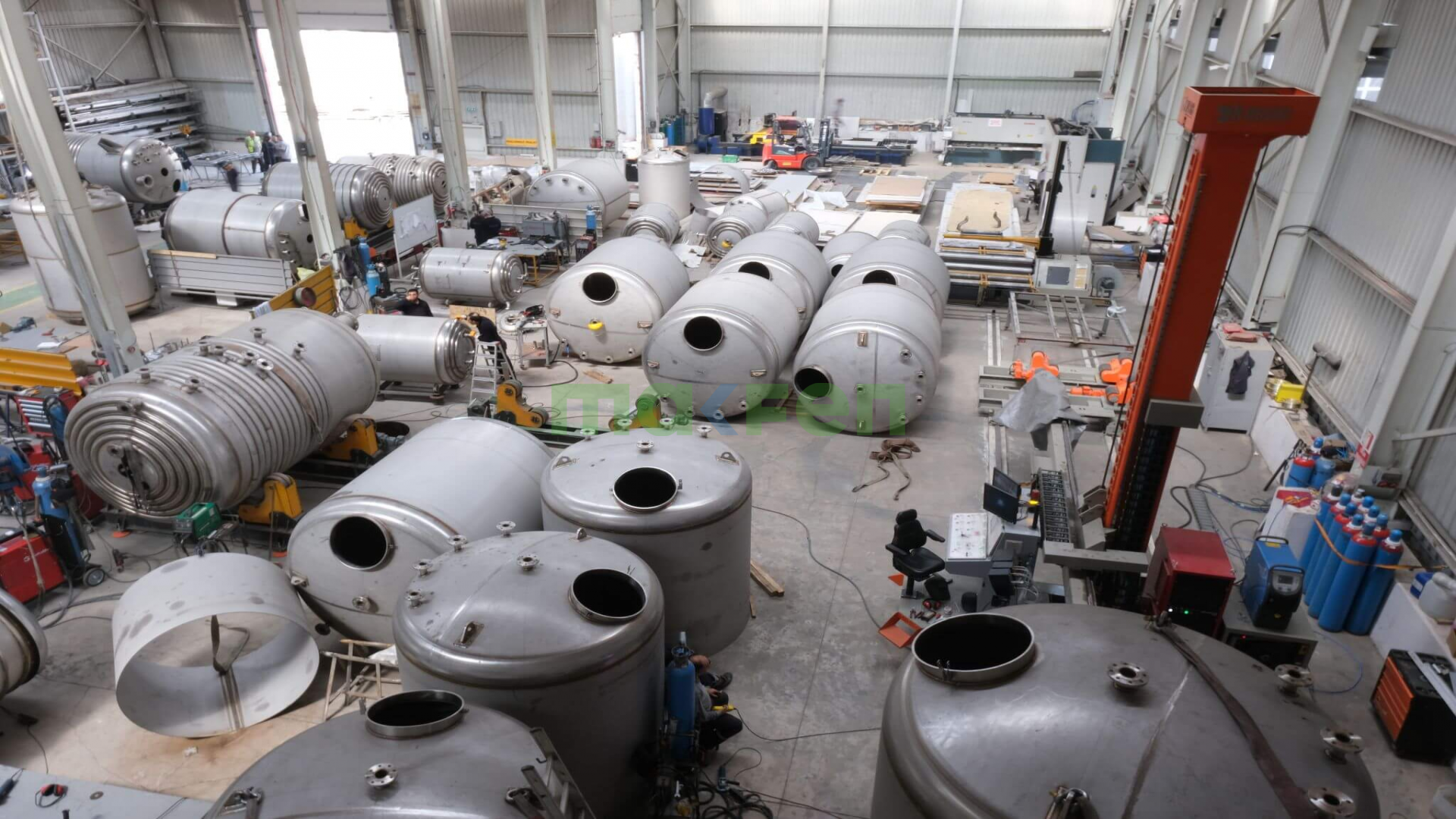

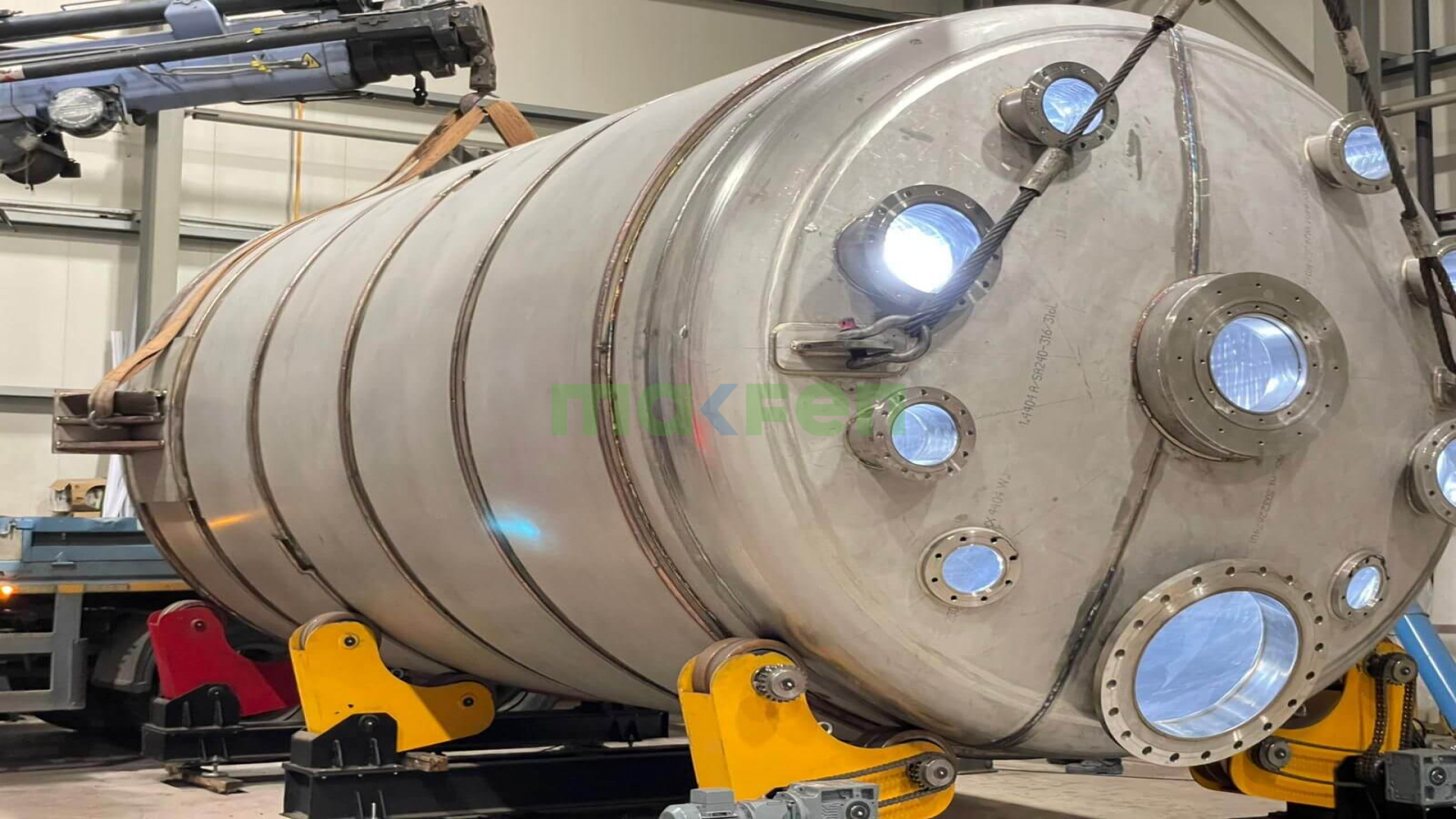

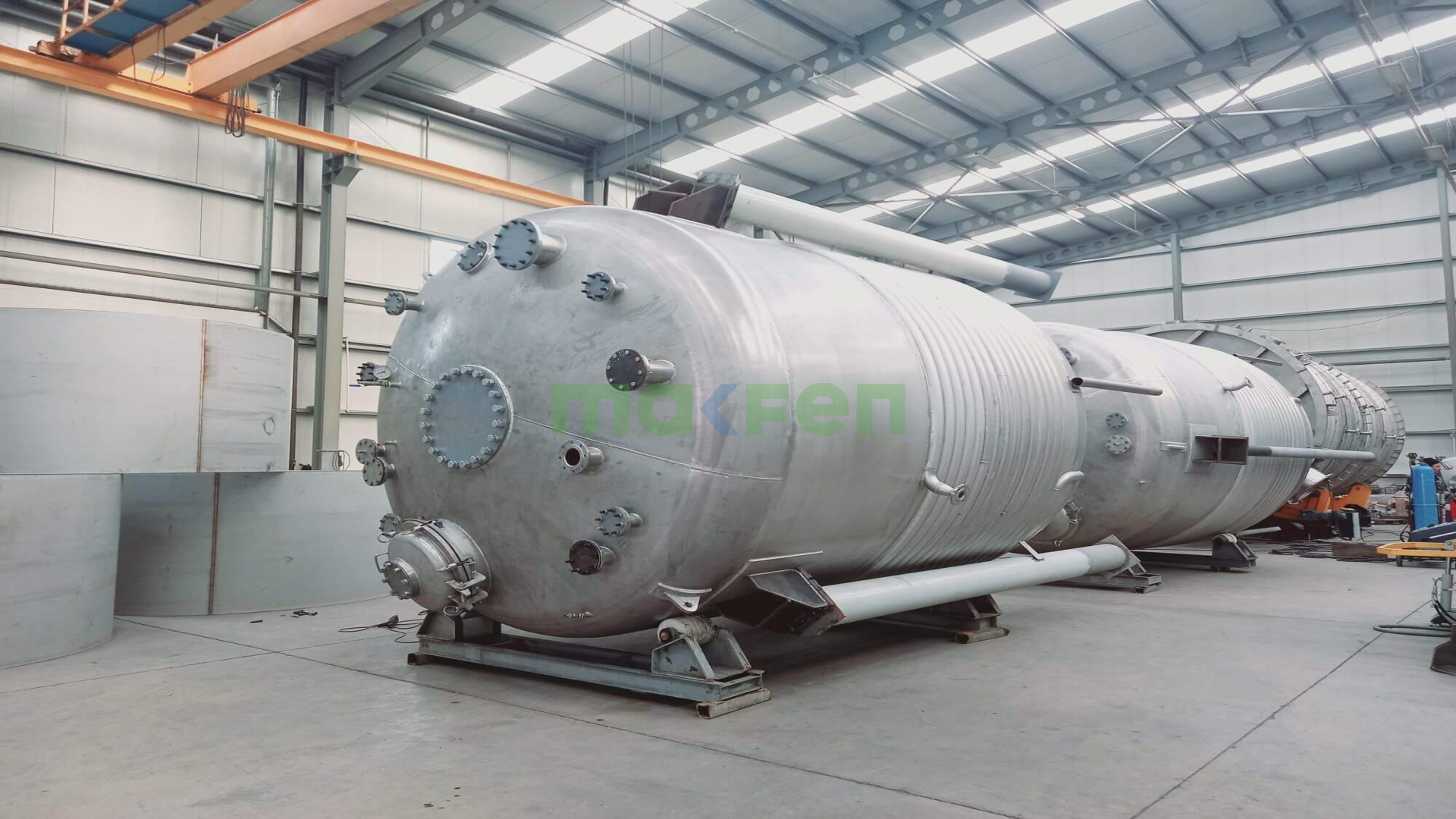

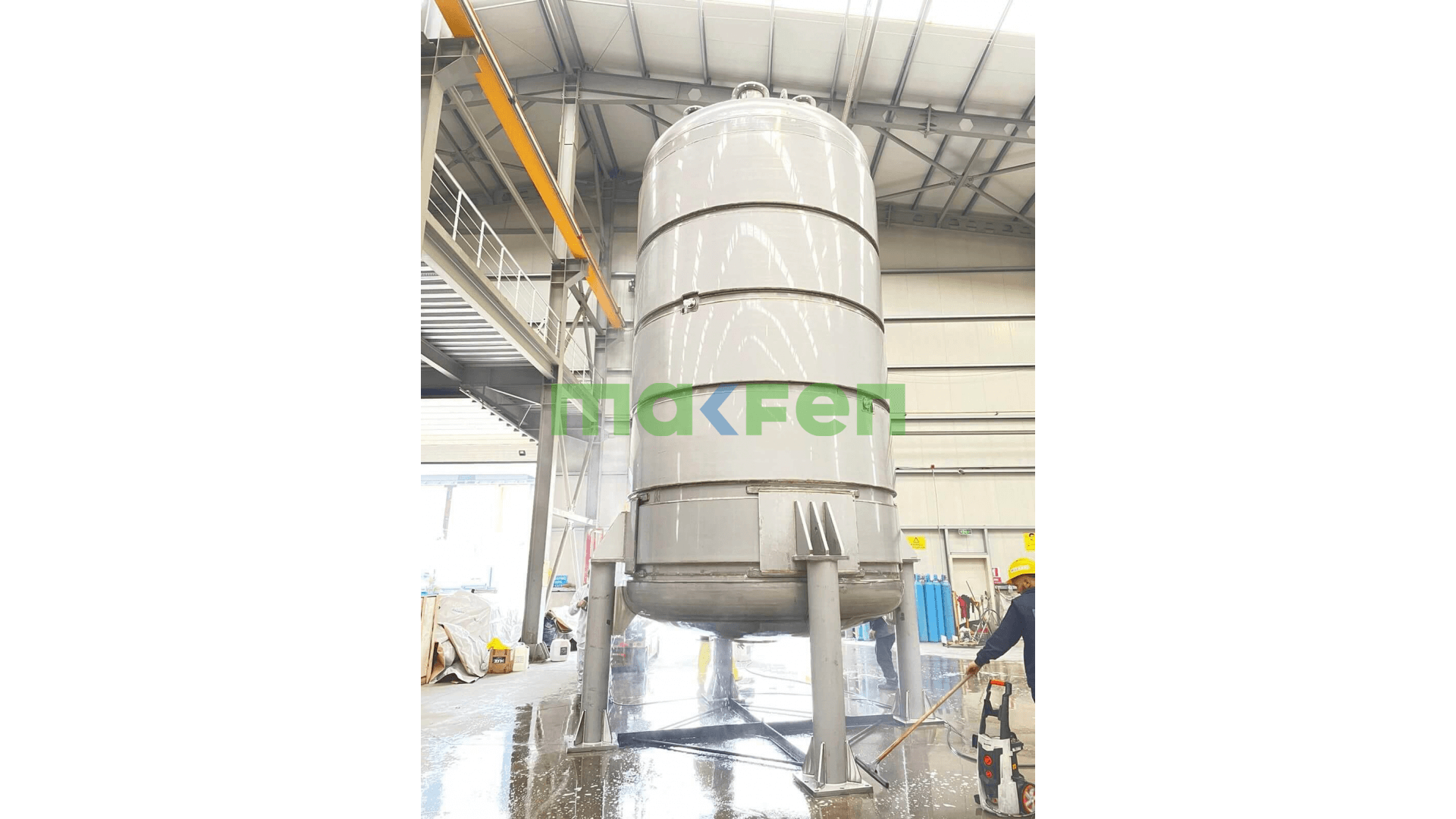

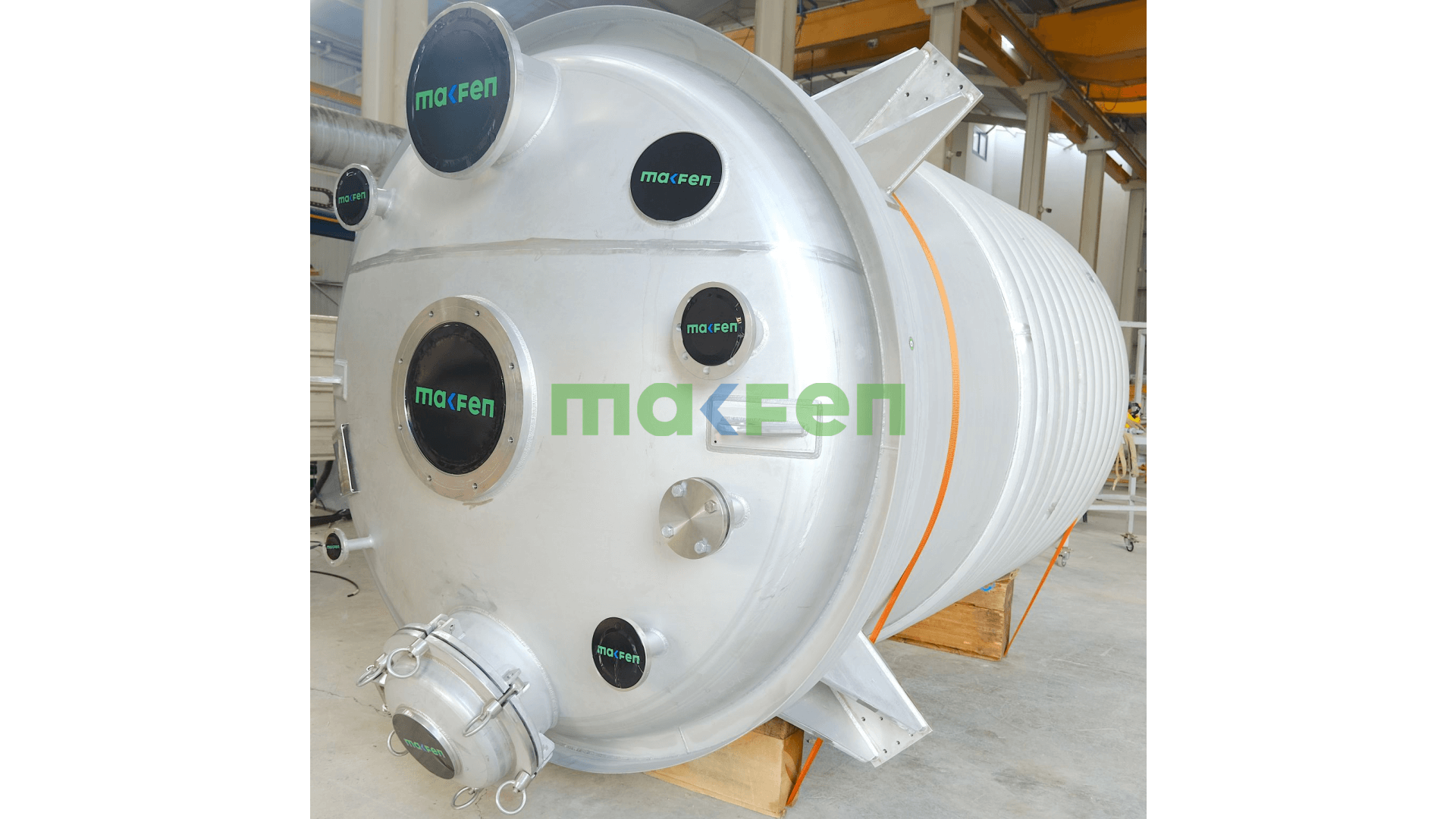

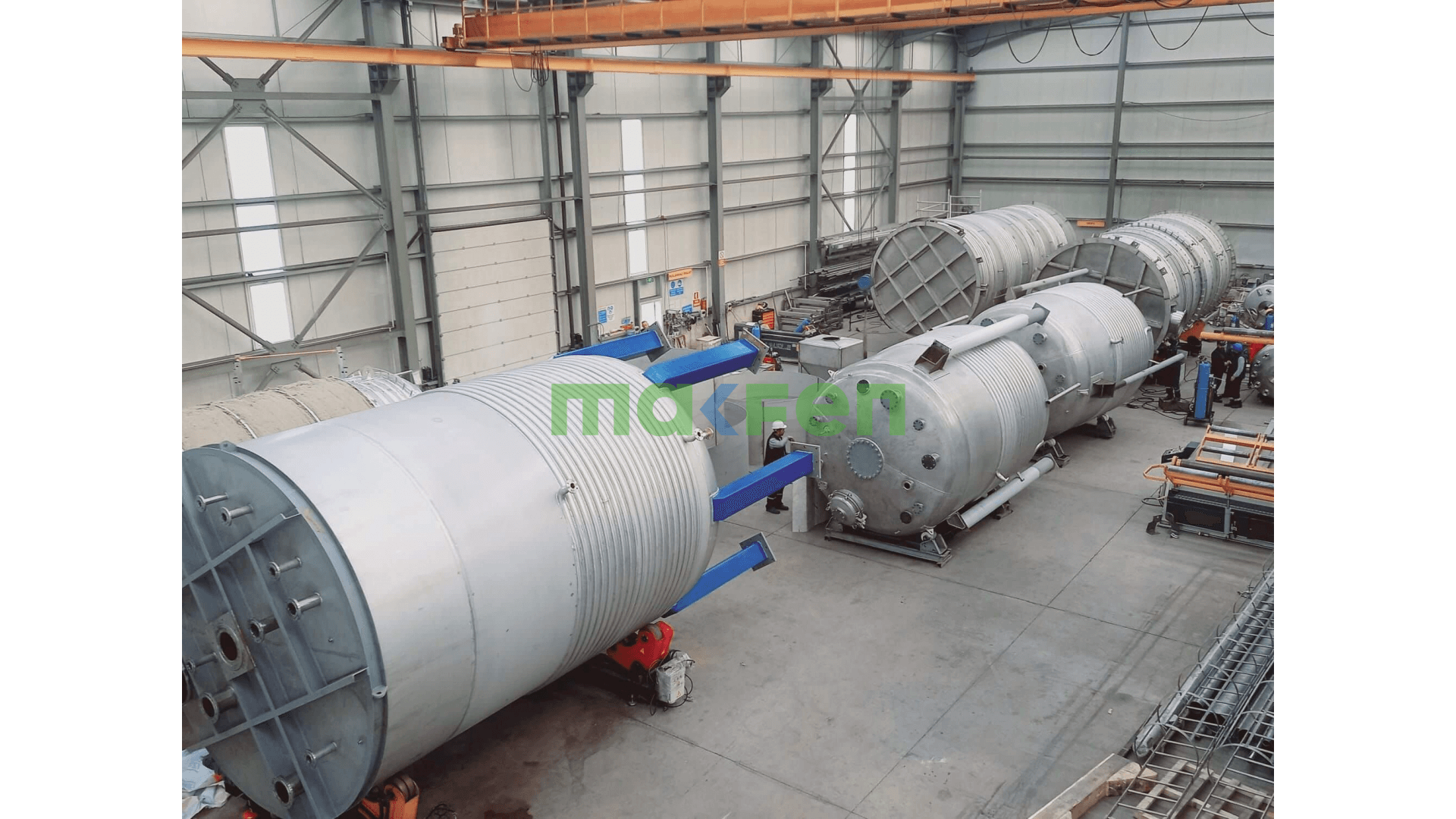

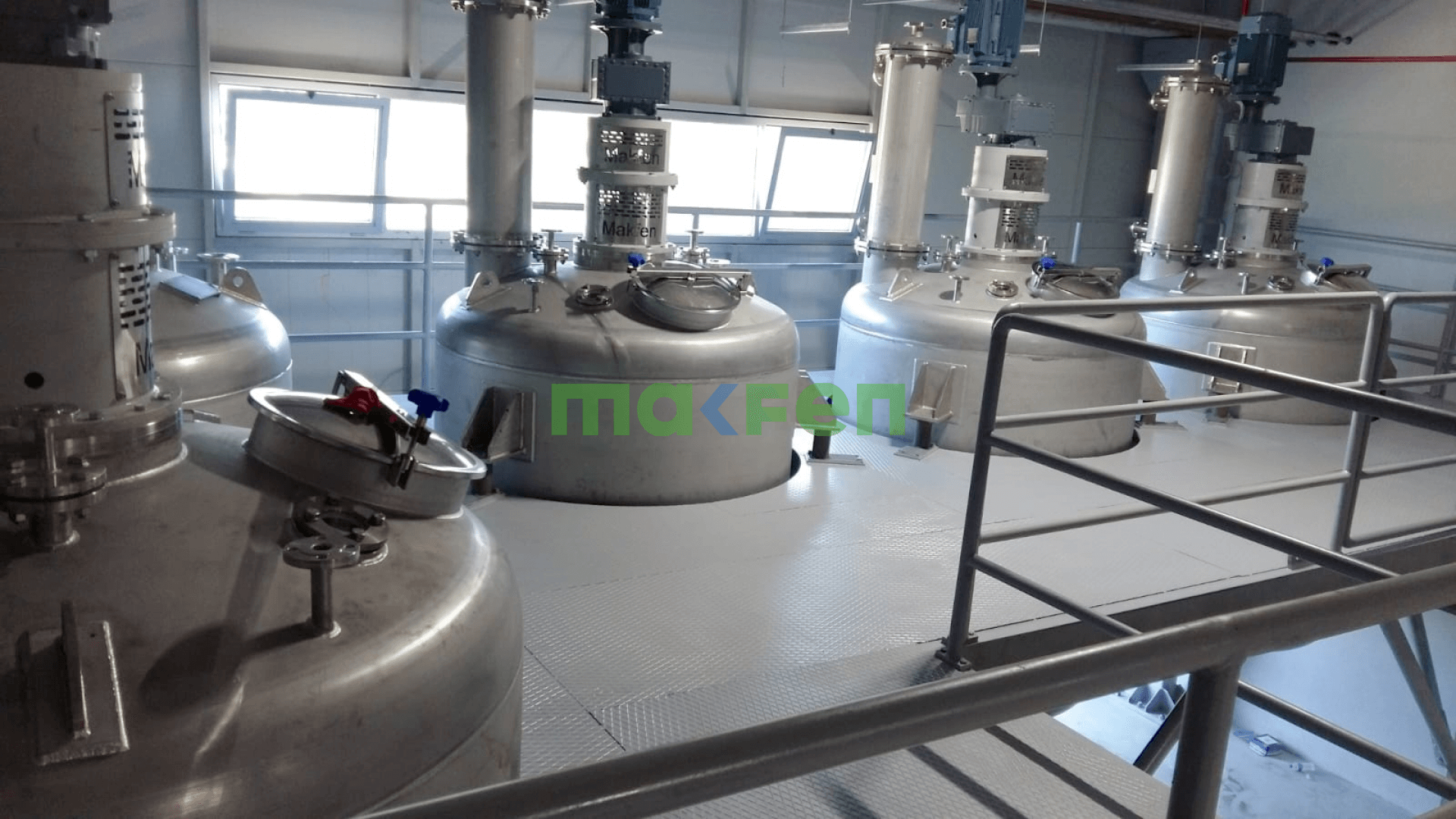

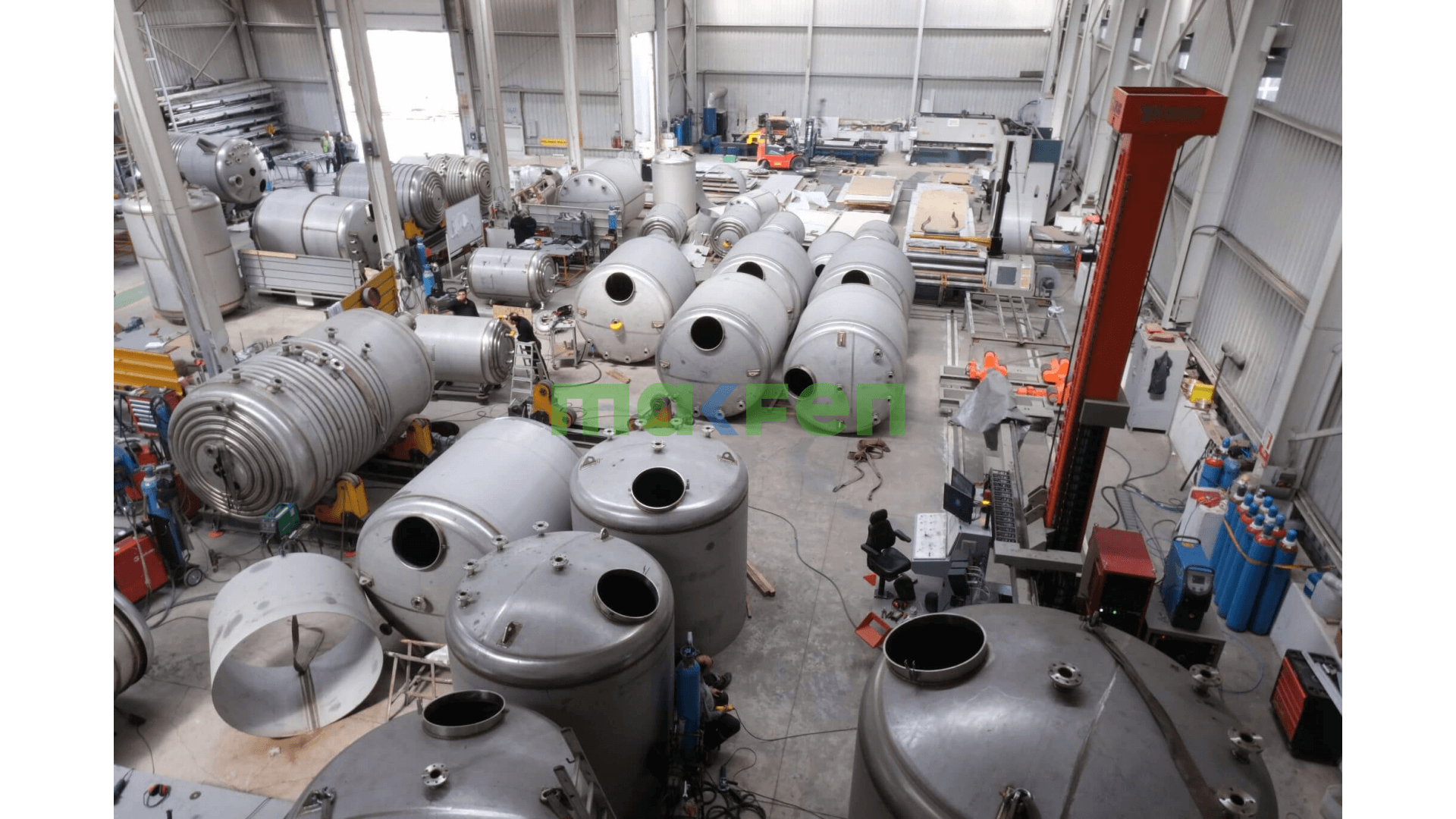

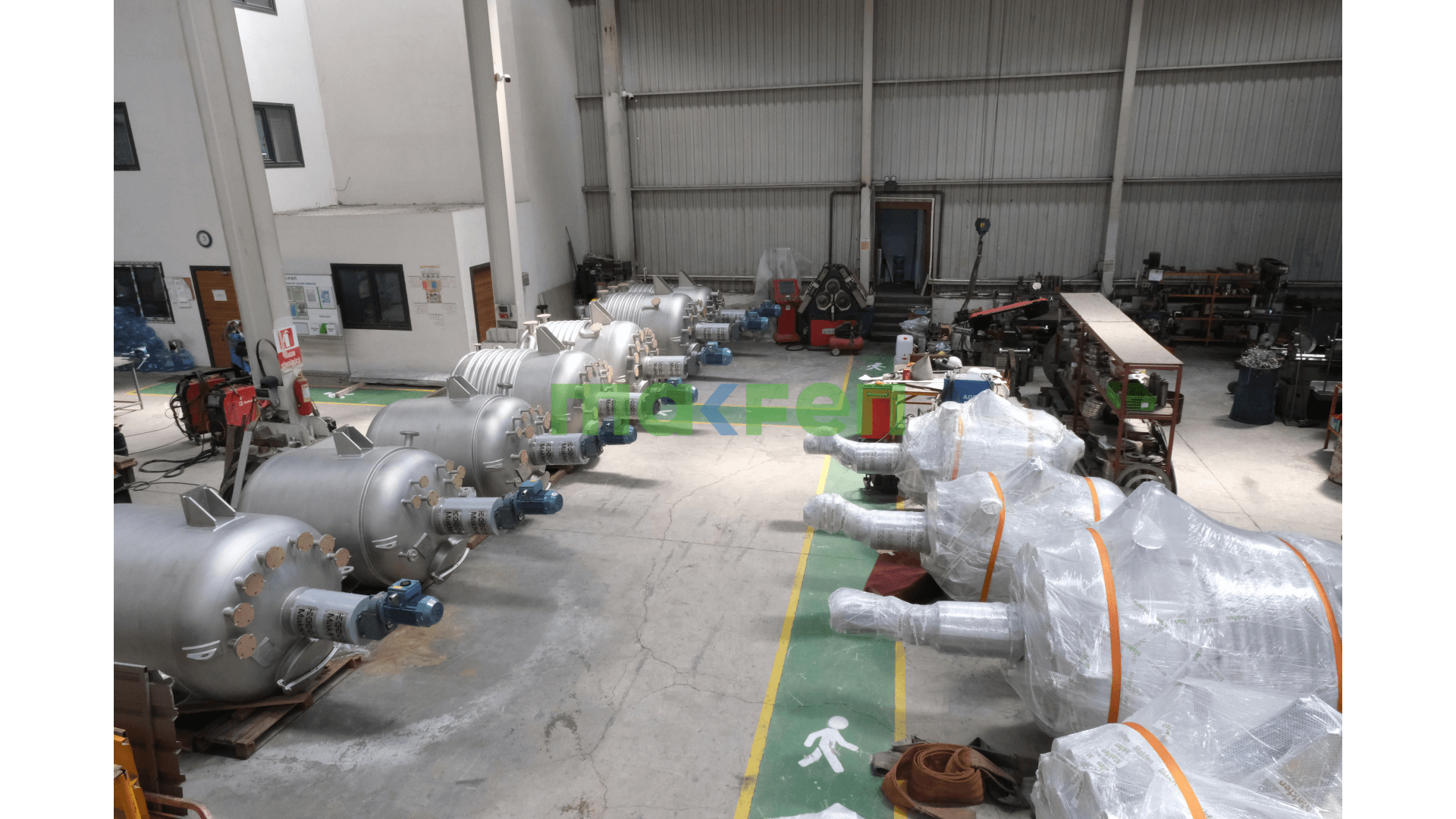

STAINLESS STEEL REACTOR

The stainless reactor is one of Makfen’s core areas of activity. Used mainly in the chemical industry, as well as in pharmaceutical and food production, these vessels provide a controlled environment for chemical reactions and are the main item of equipment in most processes.

Stainless reactors are built across a wide capacity range. They can operate under pressure or vacuum and perform heating, cooling and mixing either separately or together. The shell is mostly made of AISI 316L stainless steel. Depending on process conditions and customer preference, reactors are also manufactured in AISI 304L stainless steel, carbon steel, glass-lined (enamelled) steel, Hastelloy (a nickel alloy) and duplex stainless steel.

Stainless Reactor Applications

Some of the industrial reactor types that Makfen has designed, manufactured, documented and commissioned include:

• Polyester reactors
• Polyurethane reactors
• Resin reactors
• DOP / DOTP reactors
• Alkyd reactors
• Urea-formaldehyde resin reactors
• PVA adhesive reactors
• Lubricant (lubricating oil) reactors
• Silicone emulsion reactors

Drawing on its experience in reactor design and manufacturing since 2009, Makfen approaches every project according to the process and capacity requirements of the plant.

Key Considerations in Stainless Reactor Design

• Shell and accessory material: AISI 316/316L, AISI 304/304L, AISI 904L, AISI 310 stainless steel or carbon steel
• Chemical resistance: compatibility of the material with the product and the structural strength of the shell
• Operating pressure: design pressure and operation under vacuum

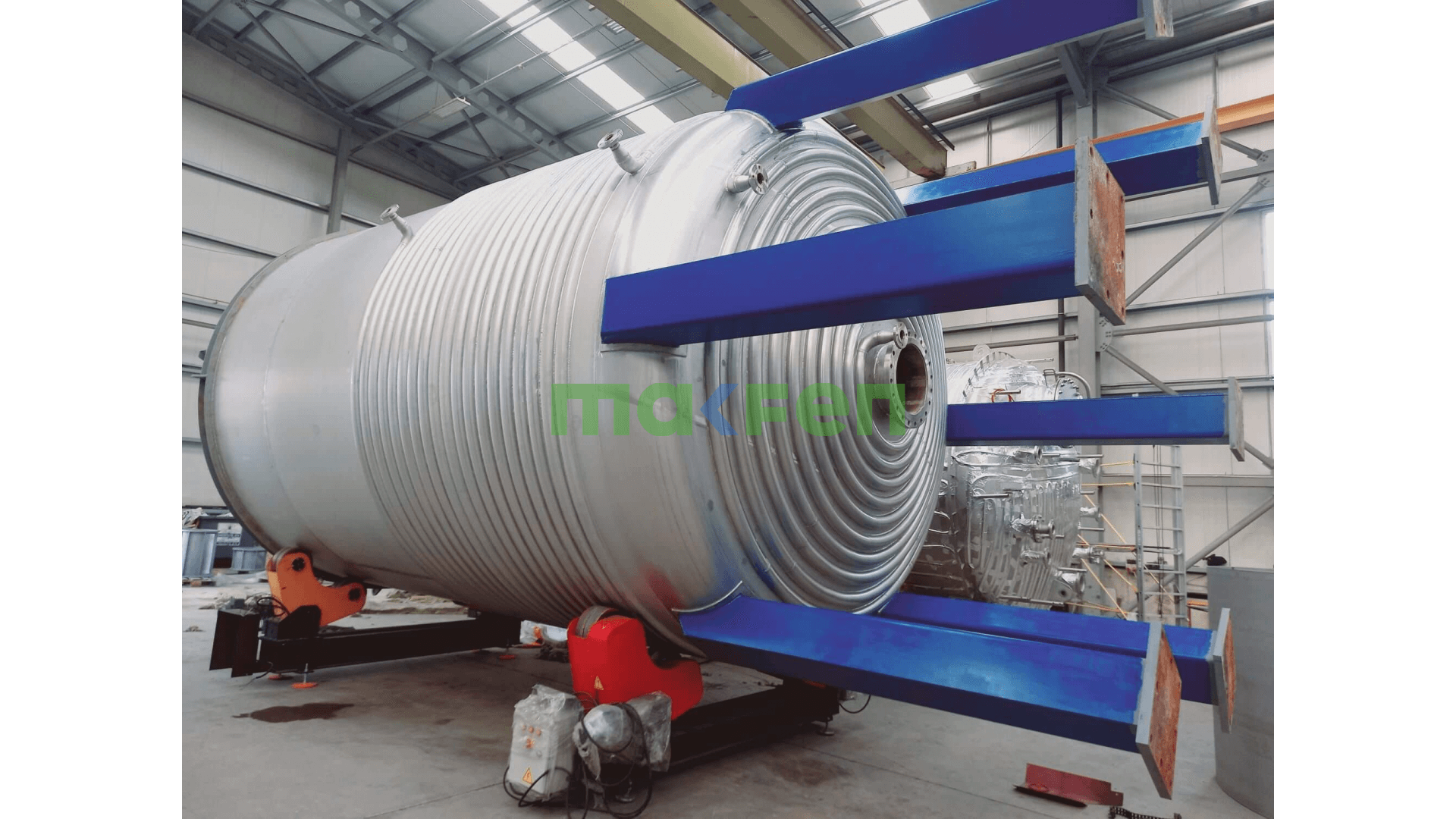

• Operating temperature: heating and cooling method, choice of jacket or coil
• Agitator speed: 900–3000 rpm for high-speed agitators, 10–120 rpm for low-speed agitators
• Agitator motor power: calculated from product viscosity and batch volume

Reactor Agitator Types

• Paddle agitator – radial flow
• Propeller agitator – axial flow
• Turbine agitator – radial flow
• Anchor agitator – tangential flow
• Universal agitator – for different viscosity ranges

Reactor Design Standards

Depending on the project, pressure reactors are designed within the scope of the Pressure Equipment Directive PED 2014/68/EU to EN 13445, ASME BPVC Section VIII or AD 2000-Merkblatt rules. Makfen holds AD 2000-Merkblatt HP 0 / PED 2014/68/EU and EN ISO 3834-2 welding quality certification.

Features of Makfen Stainless Reactors

• Design and manufacture to user requirements and international standards
• Materials and workmanship selected for the process conditions
• Certified materials

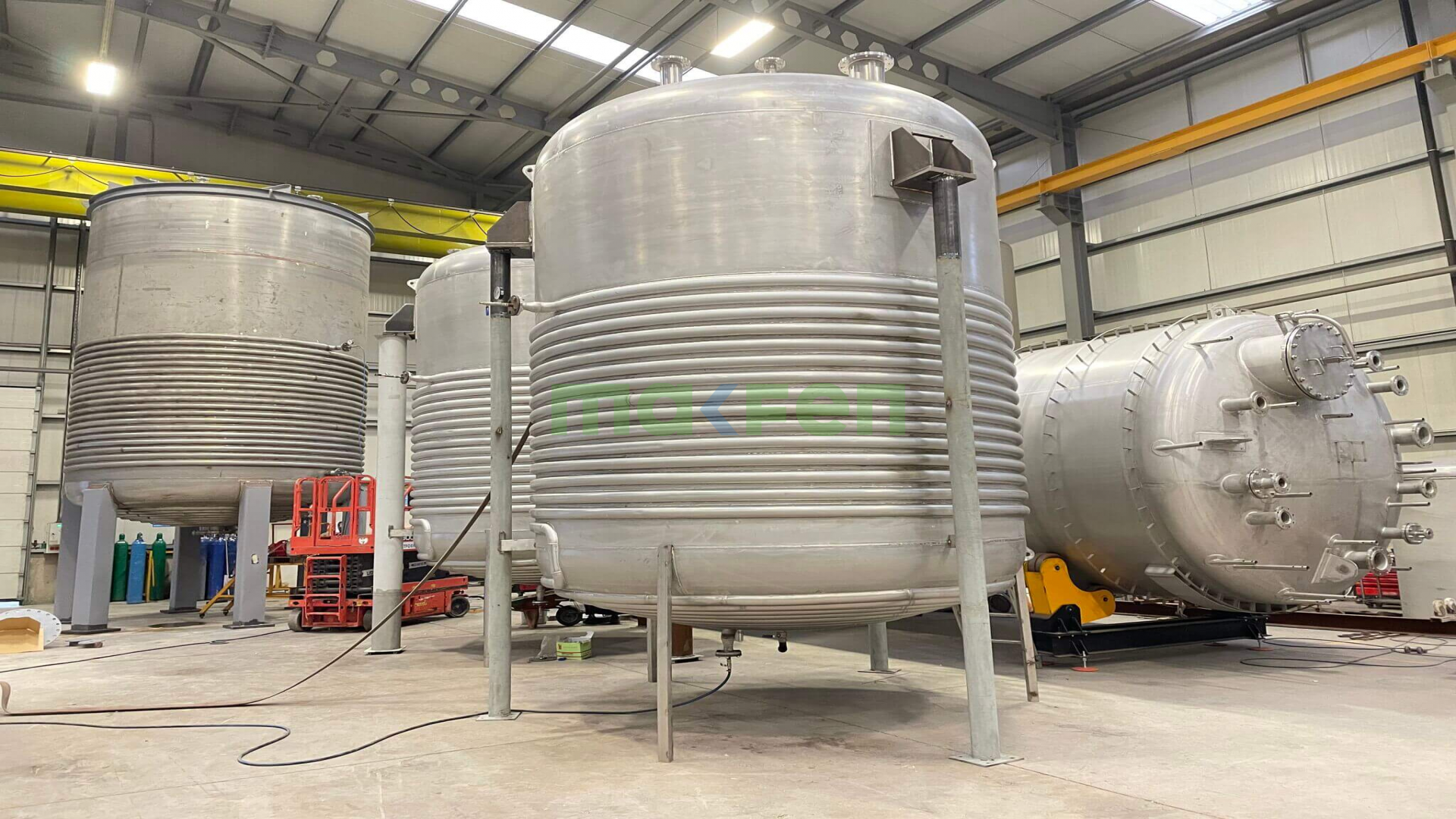

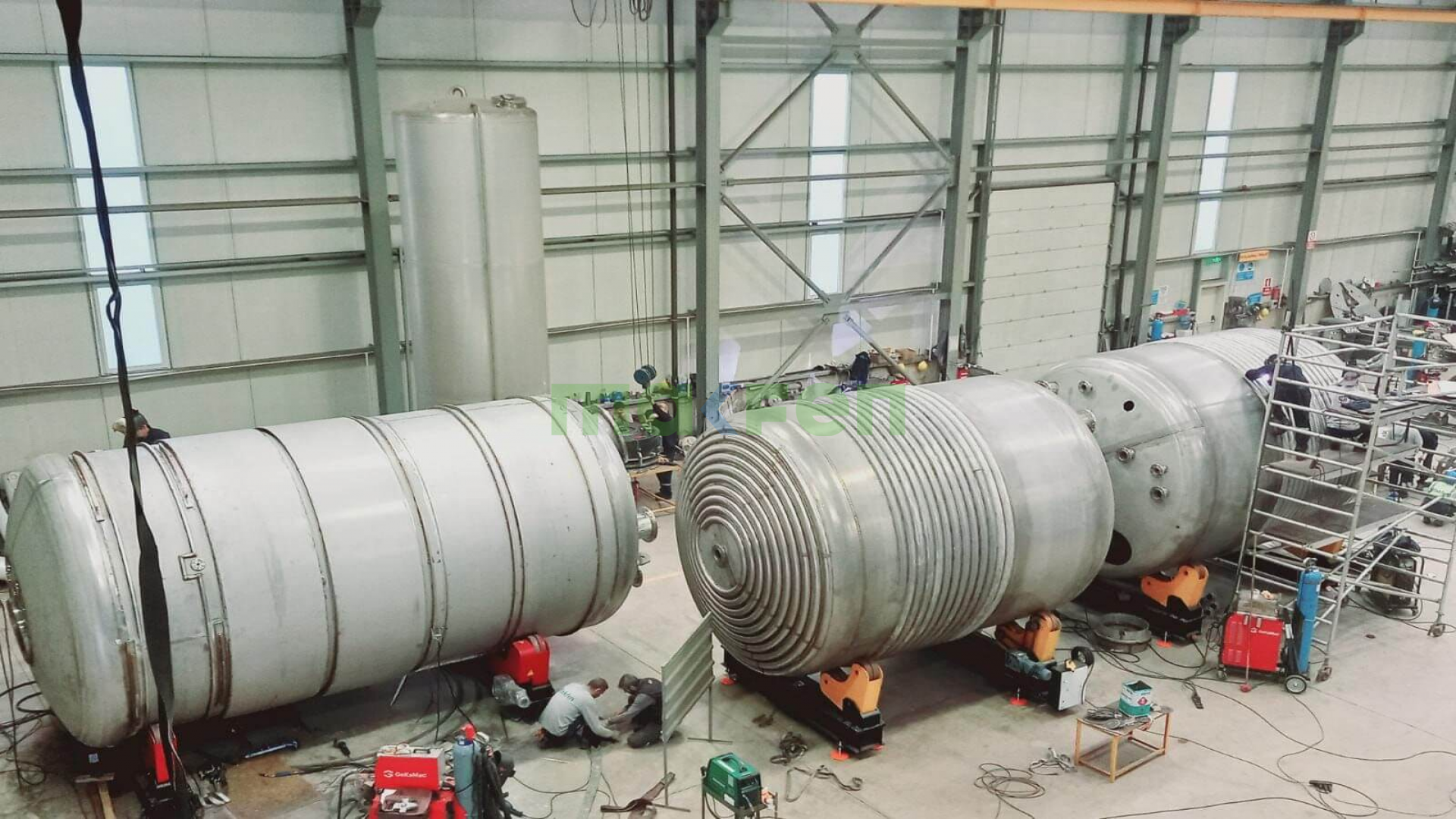

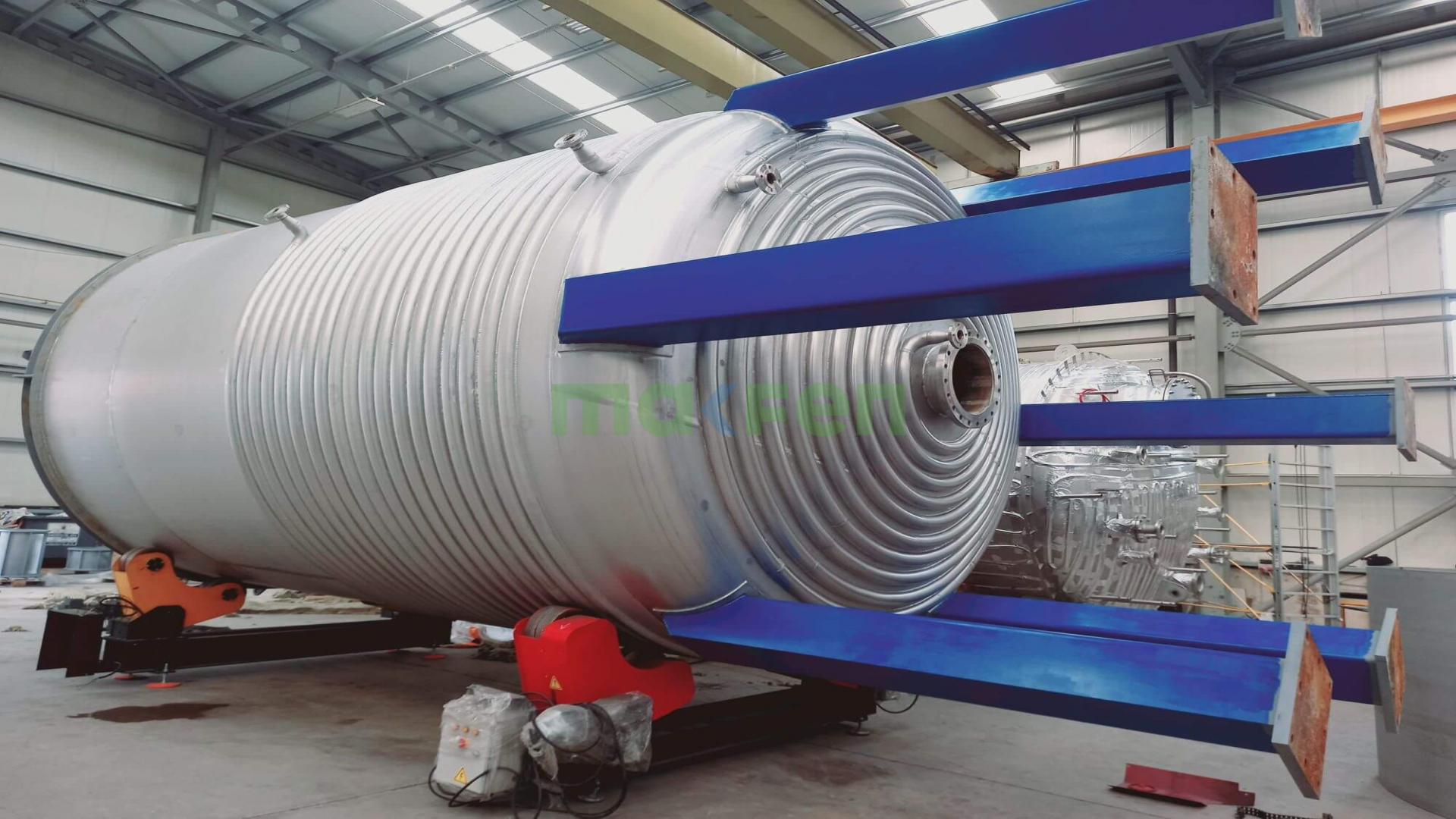

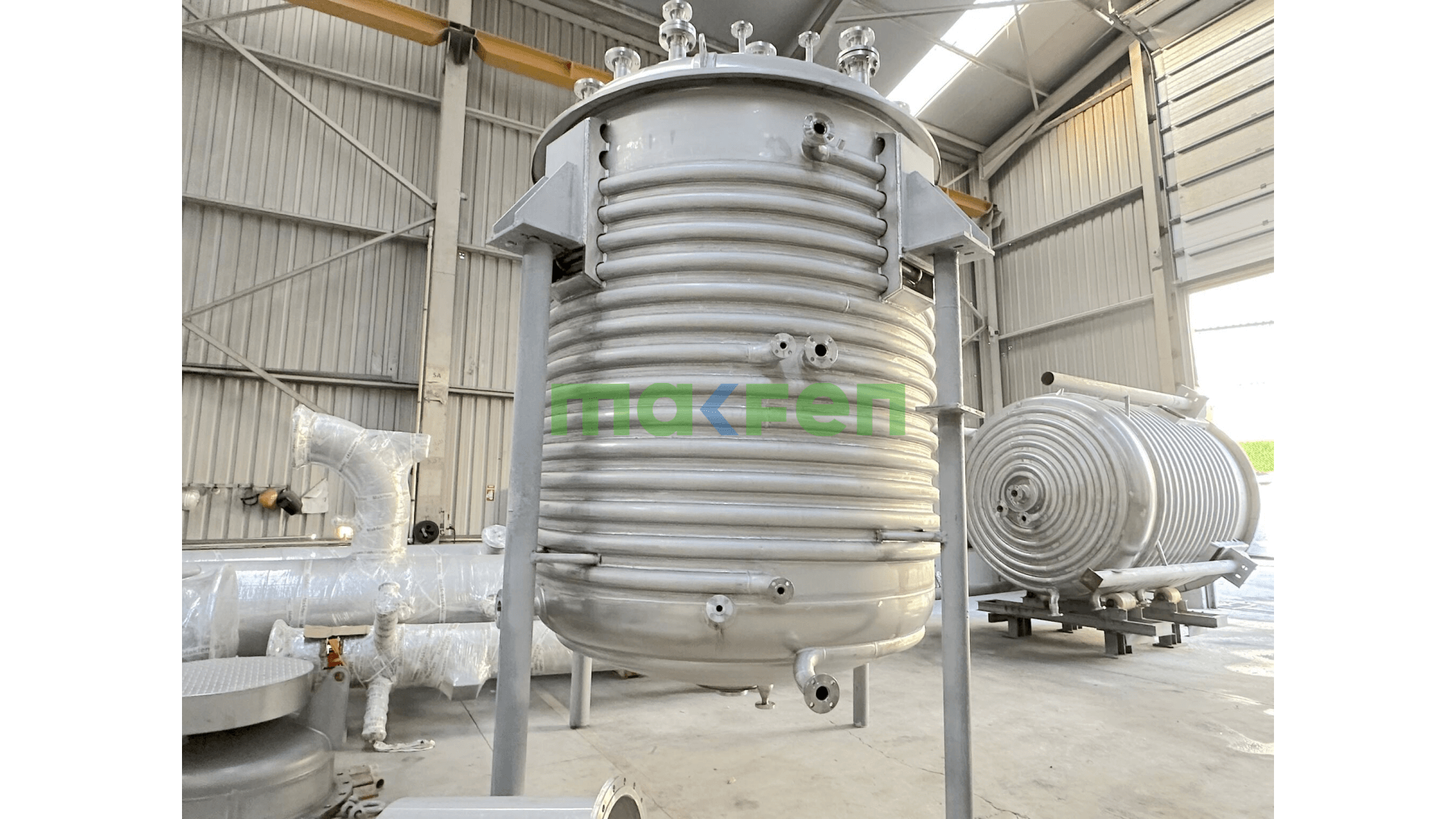

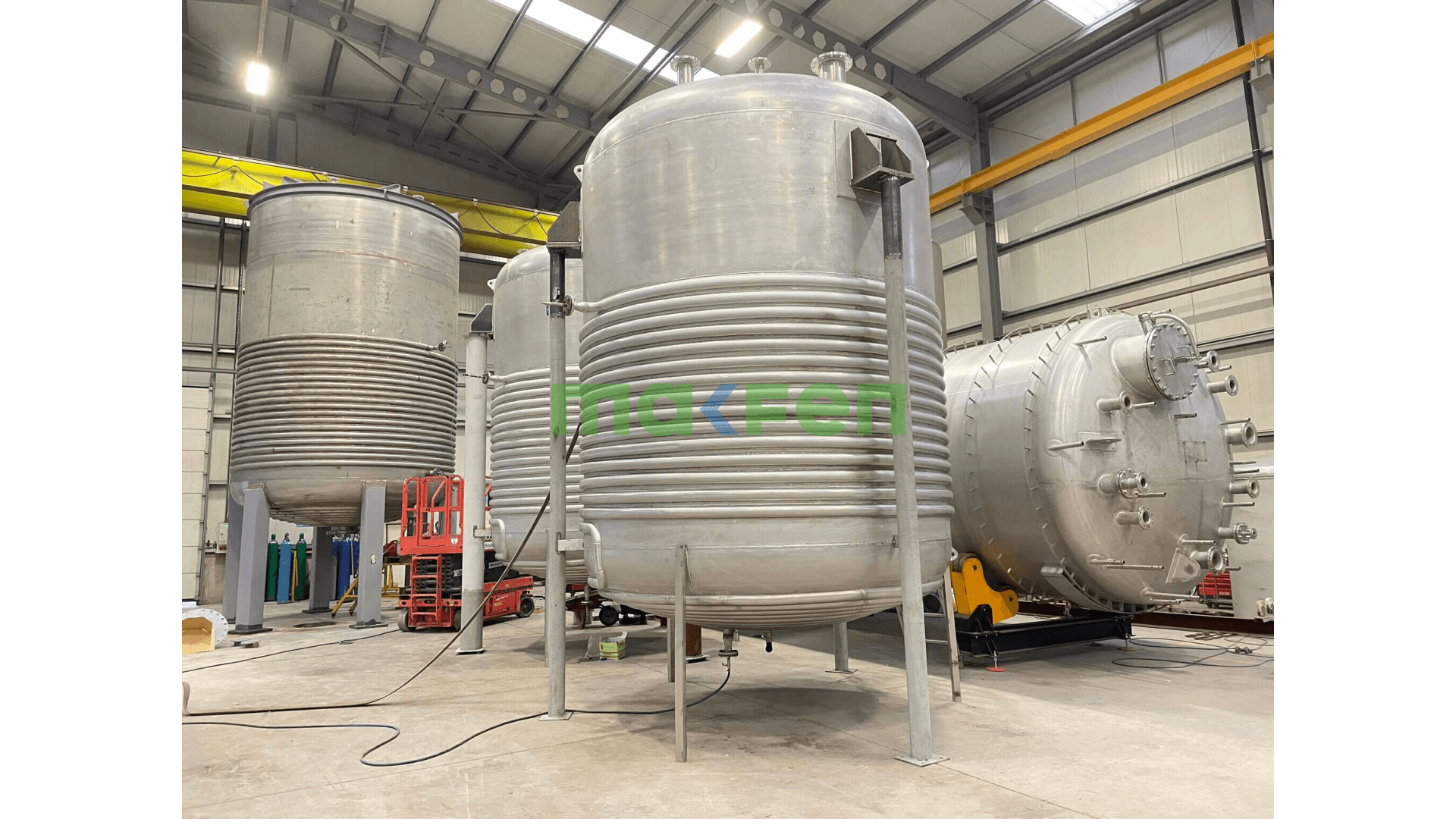

• Heating / cooling jacket or coils

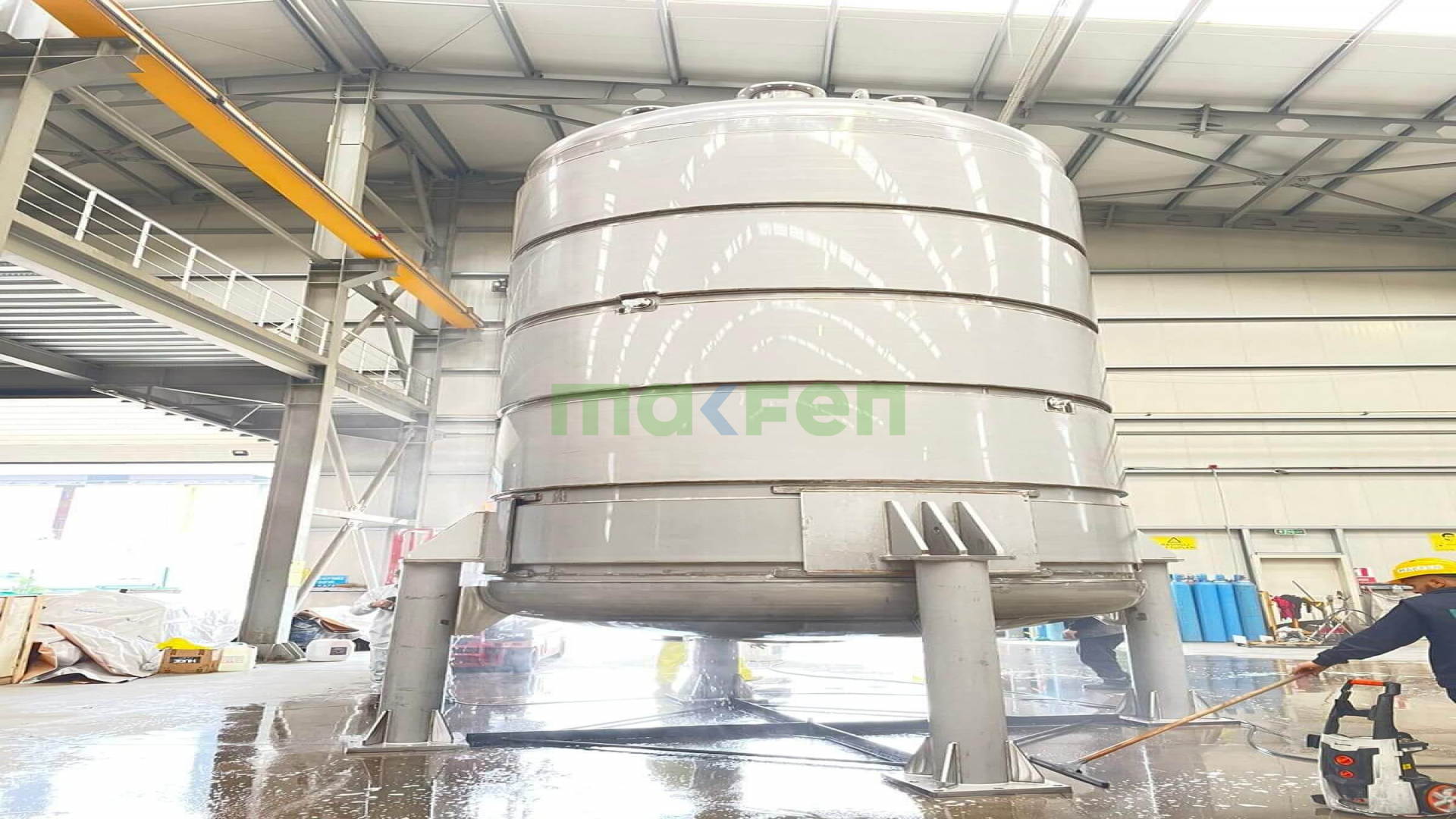

• Thermal insulation
• Mechanical or soft seal suited to the process
• Agitator speed control
• PLC control panel
• Precision weighing system
• Impeller and baffles matched to the product
• Construction rated for the design pressure and vacuum
• Ex-proof / IP-rated motor
• Polishing and painting suited to the material grade
• Complete operating and maintenance documentation

Stainless reactor prices vary with the needs and capacity of the plant. It should be remembered that the priority with this equipment is choosing the right reactor and ancillary equipment and getting the design right. Contact us for technical information and a quotation.
